Lighting System: General Description: Specification

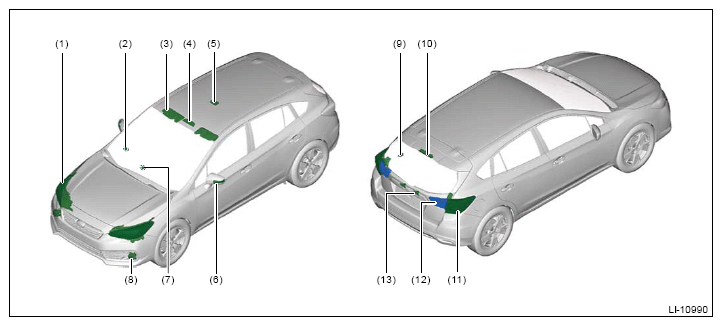

- Impreza model
- 4 door model
No. Description Capacity and wattage Type (1) Headlight (halogen type) Low beam 12 V - 55 W H11 High beam 12 V - 60 W HB3 Parking light/front turn signal light 12 V - 8/28 W 7444NA Side marker light 12 V - 5 W W5W Headlight (LED type) Low beam/high beam 12 V - 23/28 W (LED) (1) Front turn signal light 12 V - 28 W 7444NA Daytime running light/parking light 12 V - 12/1.3 W (LED) (1) Side marker light 12 V - 0.5 W (LED) (1) (2) Glove box light 12 V (LED) (1) (3) Vanity mirror light 12 V - 2 W - (4) Spot map light 12 V - 8 W - (5) Room light 12 V - 8 W - (6) Side turn signal light 12 V - 0.4 W (LED) (1) (7) Pocket light 12 V (LED) (1) (8) Front fog light Except for LED model 12 V - 19 W H16 LED model 12 V - 5.4 W (LED) (1) Daytime running light 12 V - 1.9 W (LED) (1) (9) Trunk room light 12 V - 3.8 W SAE#194 (10) High-mounted stop light 12 V - 0.7 W (LED) (1) (11) Rear combination light Tail light/side marker light 12 V - 5 W W5W Stop light 13.5 V - 2 W (LED) (1) Turn signal light 12 V - 21 W WY21W (12) Rear finisher light Back-up light 12 V - 21 W W21W (13) License plate light 12 V - 5 W W5W (1) Non-disassembly type - 5 door model
No. Description Capacity and wattage Type (1) Headlight (halogen type) Low beam 12 V - 55 W H11 High beam 12 V - 60 W HB3 Parking light/front turn signal light 12 V - 8/28 W 7444NA Side marker light 12 V - 5 W W5W Headlight (LED type) Low beam/high beam 12 V - 23/28 W (LED) (1) Front turn signal light 12 V - 28 W 7444NA Daytime running light/ 12 V - 12/1.3 W parking light (LED) (1) Side marker light 12 V - 0.5 W (LED) (1) (2) Glove box light 12 V (LED) (1) (3) Vanity mirror light 12 V - 2 W - (4) Spot map light 12 V - 8 W - (5) Room light 12 V - 8 W - (6) Side turn signal light 12 V - 0.4 W (LED) (1) (7) Pocket light 12 V (LED) (1) (8) Front fog light Except for LED model 12 V - 19 W H16 LED model 12 V - 5.4 W (LED) (1) Daytime running light 12 V - 1.9 W (LED) (1) (9) Luggage room light 12 V - 5 W W5W (10) High-mounted stop light 12 V - 1.1 W (LED) (1) (11) Rear combination light Tail light 12 V - 5 W W5W Stop light 13.5 V - 2 W (LED) (1) Turn signal light 12 V - 21 W WY21W Side marker light 12 V - 5 W W5W (12) Rear finisher light Back-up light 12 V - 21 W W21W (13) License plate light 12 V - 5 W W5W (1) Non-disassembly type

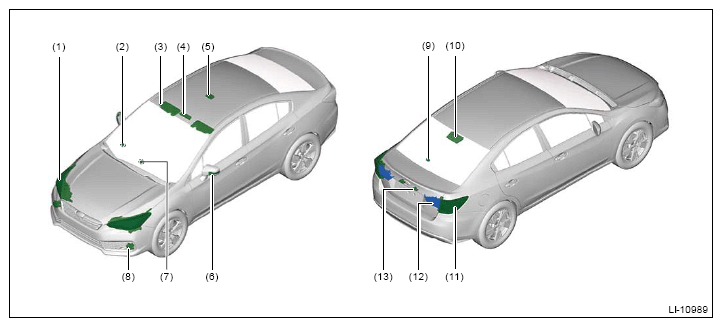

- 4 door model

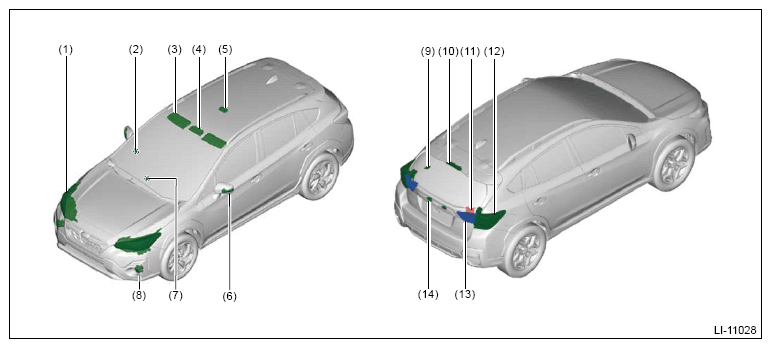

- Crosstrek model
No. Description Capacity and wattage Type (1) Headlight (halogen type) Low beam 12 V - 55 W H11 High beam 12 V - 60 W HB3 Parking light/front turn signal light 12 V - 8/28 W 7444NA Side marker light 12 V - 5 W W5W Headlight (LED type) Low beam/high beam 12 V - 23/28 W (LED) (1) Front turn signal light 12 V - 28 W 7444NA Daytime running light/parking light 12 V - 12/1.3 W (LED) (1) Side marker light 12 V - 0.5 W (LED) (1) (2) Glove box light 12 V (LED) (1) (3) Vanity mirror light 12 V - 2 W - (4) Spot map light 12 V - 8 W - (5) Room light 12 V - 8 W - (6) Side turn signal light 12 V - 0.4 W (LED) (1) (7) Pocket light 12 V (LED) (1) (8) Front fog light Except for LED model 12 V - 19 W H16 LED model 12 V - 5.4 W (LED) (1) (9) Luggage room light 12 V - 5 W W5W (10) High-mounted stop light 12 V - 1.1 W (LED) (1) (11) Rear gate light 13.5 V (LED) (1) (12) Rear combination light Tail light 12 V - 5 W W5W Stop light 13.5 V - 2 W (LED) (1) Turn signal light 12 V - 21 W WY21W Side marker light 12 V - 5 W W5W (13) Rear finisher light Back-up light 12 V - 21 W W21W (14) License plate light 12 V - 5 W W5W (1) Non-disassembly type
