LCD/TFT Display Check

Check the LCD/TFT display.

NOTE:

The meter needle indicate 0 or the lowest position.
ILL indication illuminates at the same brightness as immediately before entering "LCD/TFT display check".
For model with normal meter, after No. 14 is displayed in the illumination order, the display is repeated from No. 1 again.
For model with color TFT meter, after No. 8 is displayed in the illumination order, the display is repeated from No. 1 again. The version display contents of the illumination order No. 1 varies depending on the vehicle.

After a buzzer sounds for 0.5 seconds and "STEP3" is displayed on LCD/TFT, the LCD/TFT display check mode is initiated.

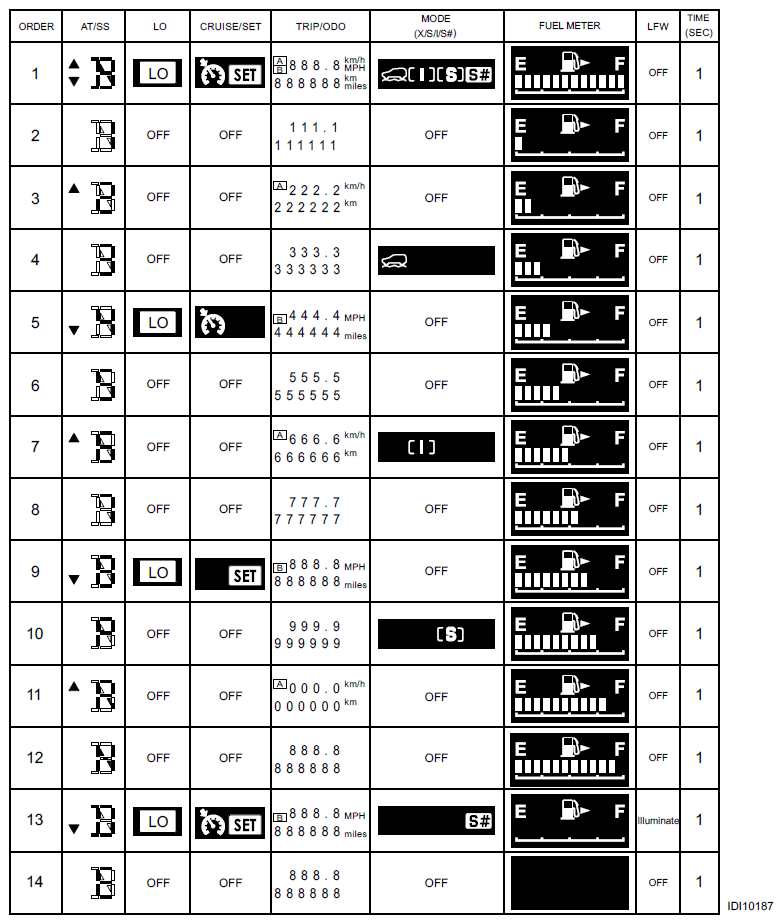

Model with normal meter

Courtesy of SUBARU OF AMERICA, INC.

Order	TFT display	Warning/indicator light	Time (sec)
1	Version display & color gradation	Light OFF	10
2	Black	Light OFF	10
3	Red	Light OFF	10
4	Green	Light OFF	10
5	Blue	Light OFF	10
6	White	Light OFF	10
7	Color gradation	Light OFF	10
8	Cross talking	Light OFF	10
