Electric Power Steering System: Wiring Diagram

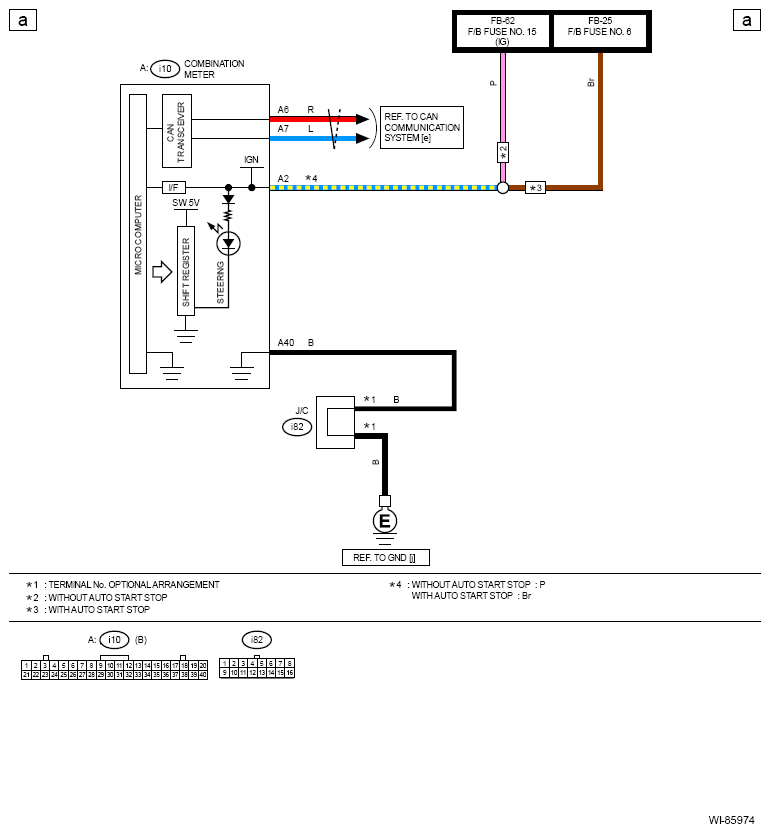

G13614030

Courtesy of SUBARU OF AMERICA, INC.

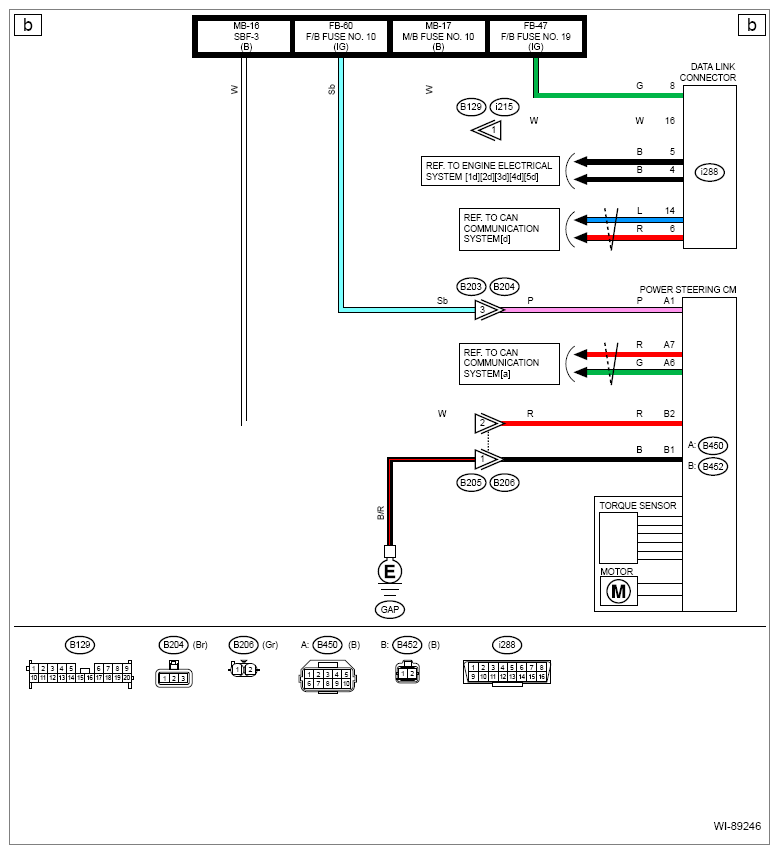

G13940342

Courtesy of SUBARU OF AMERICA, INC.
