Hybrid Model

  1. Release the parking brake.
  2. Using the Subaru Select Monitor, go to the brake maintenance mode according to the display screen. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
  3. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  4. Lift up the vehicle, and then remove the rear wheels.
  5. Remove the disc brake assembly.

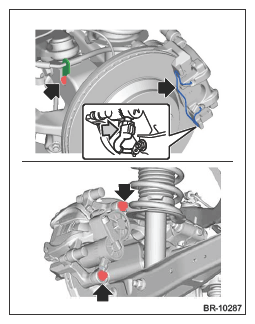

    1. Remove the pad clip, the connector and the brake hose bracket.
    2. Remove the mounting bolt, and remove the disc brake assembly.
      G13232083Courtesy of SUBARU OF AMERICA, INC.
    3. Prepare wiring harnesses etc. to be discarded, and suspend the disc brake assembly from the shock absorber assembly.
    G13232084Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the disc rotor.
NOTE:
  • Before removing the disc rotor, put an alignment mark (b) on the hub bolt so that it matches the alignment mark (a) of the disc rotor.
    G11255201Courtesy of SUBARU OF AMERICA, INC.
  • When the disc rotor is difficult to be removed from the rear hub unit bearing, screw in 8 mm (0.31 in) bolt to the threaded part of the disc rotor (A), and remove the disc rotor.
G13232085Courtesy of SUBARU OF AMERICA, INC.
