Except For Hybrid Model

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Release the lever assembly - hand brake.
  3. Remove the disc brake assembly.
    1. Remove the brake hose bracket.
    2. Remove the mounting bolt, and remove the disc brake assembly.
    3. Prepare wiring harnesses etc. to be discarded, and suspend the disc brake assembly from the shock absorber assembly.

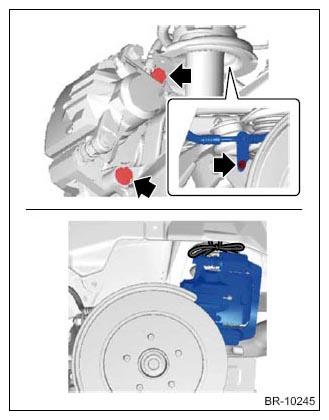

    G11255198Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the disc rotor.
    NOTE:
    • Before removing the disc rotor, put an alignment mark (b) on the hub bolt so that it matches the alignment mark (a) of the disc rotor.
      G11255201Courtesy of SUBARU OF AMERICA, INC.
    • If it is difficult to remove the disc rotor, perform the following two methods in order.
    1. Remove the adjusting hole cover (A), and turn the adjuster assembly - rear brake in the arrow (e) direction by inserting a flat tip screwdriver.

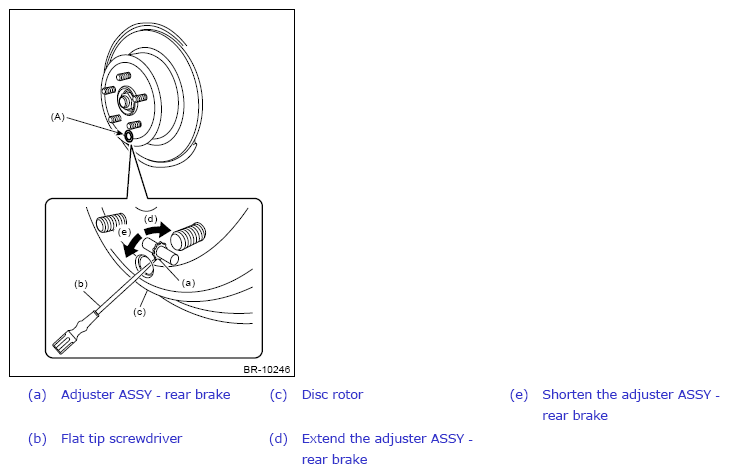

      G13935350Courtesy of SUBARU OF AMERICA, INC.
    2. When the disc rotor is difficult to be removed from the rear hub unit bearing, screw in 8 mm (0.31 in) bolt to the threaded part of the disc rotor (A), and remove the disc rotor.
G11255200Courtesy of SUBARU OF AMERICA, INC.
