Hybrid Model

  1. Release the parking brake.
  2. Using the Subaru Select Monitor, go to the brake maintenance mode according to the display screen. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
  3. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  4. Lift up the vehicle, and then remove the rear wheels.
  5. Remove the pad - disc brake rear.

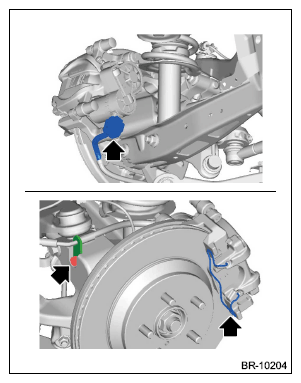

    1. Disconnect the connector.
    2. Remove the pad clip and the brake hose bracket.
      G13232074Courtesy of SUBARU OF AMERICA, INC.

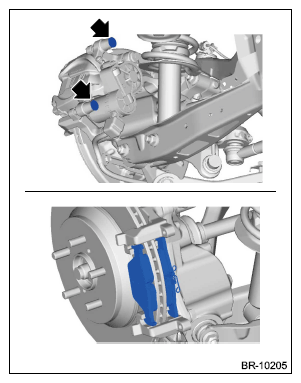

    3. Remove the cap and the guide pin - rear brake, and remove the pad - disc brake rear.

      Preparation tool:

      Hexagon wrench: 7 mm (0.28 in)

G13232075Courtesy of SUBARU OF AMERICA, INC.
