IMPREZA Model

CAUTION:
  • Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.
  • Prepare a container to catch grease or oil, etc. If any grease or oil spills, wipe it off and clean immediately to prevent from penetrating into floor or flowing outside.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle, and then remove the front and rear wheels.
  3. Drain brake fluid from the reservoir tank completely.
  4. Remove the master cylinder assembly.

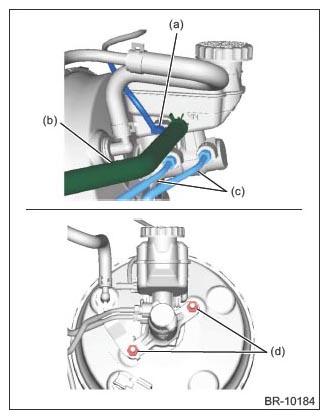

    1. Disconnect the fluid level gauge connector (a).
    2. Disconnect the clutch hose (b). (MT model)
    3. Disconnect the brake pipe (c).
    4. Remove the nut (d), and slowly remove the master cylinder assembly from the vacuum booster assembly.
G11255215Courtesy of SUBARU OF AMERICA, INC.
