Front Brake Pad: Removal
- Lift up the vehicle, and then remove the front wheels.
- Remove the pad - disc brake front.

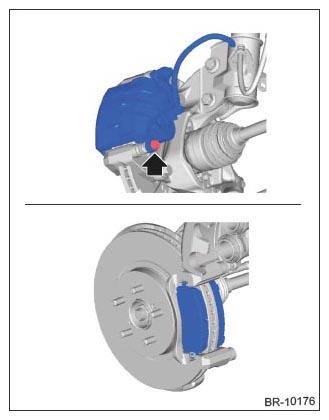

- Remove the caliper bolt on the lower side.
- Raise the caliper body assembly and remove the pad - disc brake front.
NOTE:
Do not disconnect the brake hose from the caliper body assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|
