Brake Vacuum Hose & Pipe

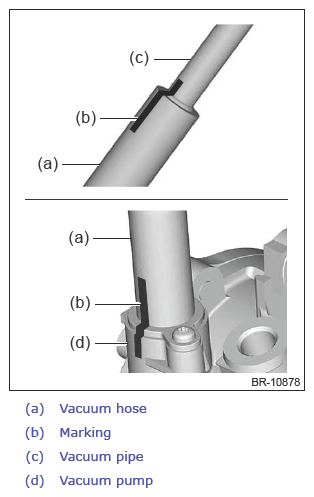

CAUTION: Install the vacuum hose on the vacuum pump side so that the marks are aligned.

Courtesy of SUBARU OF AMERICA, INC.

Install the vacuum hose onto the vacuum pipe.
Connect the vacuum hose & pipe to the intake manifold assembly and the vacuum booster assembly.
Install the vacuum hose to the vacuum pump.
Clearance:

Clearance between vacuum hose and surrounding parts: 15 mm (0.59 in) or more
Install the pipe clamp to the bulkhead.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
