Brake Stroke Sensor

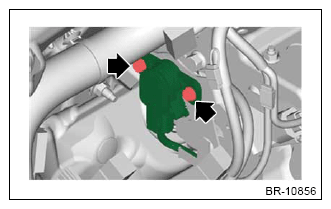

- Loosen the bolt.
 Courtesy of SUBARU OF AMERICA, INC.
|

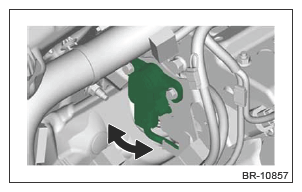

- Slowly rotate the brake stroke sensor so that the output value is within the standard.
Specification:
1±0.2 V
 Courtesy of SUBARU OF AMERICA, INC.
|
- Tighten the bolt.
CAUTION:
After turning ignition ON, do not depress the brake pedal until after tightening the lock nut.
Tightening torque:
8 N.m (0.8 kgf-m, 5.9 ft-lb)
