Bumper Beam

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the bumper face - front.
  3. Remove the energy absorber foam.
  4. Remove the bolts and disconnect the connector, and remove the active grille shutter. (Model with active grille shutter)
    G11246465Courtesy of SUBARU OF AMERICA, INC.

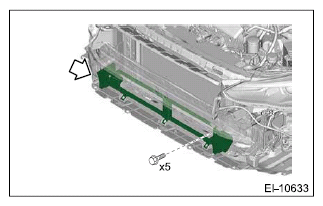

  5. Remove the bolts and disconnect the connector, and remove the frame assembly - active grille shutter. (Model without active grille shutter)
    G12399188Courtesy of SUBARU OF AMERICA, INC.
  6. Release the clips and claws, then remove the air guide LWR. (Hybrid model)
    G13234297Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the bolts, and remove the bumper beam COMPL - front.
    G11246466Courtesy of SUBARU OF AMERICA, INC.
