Door Trim: Disassembly

  1. Remove the trim panel - door.

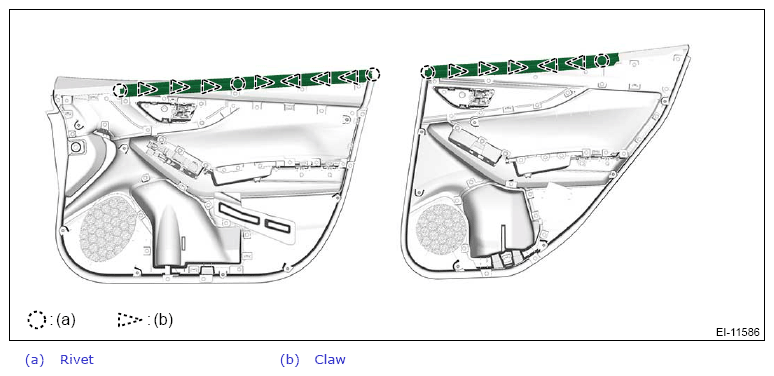

  2. Disengage the rivets and claws, and remove the weather strip - door INN from the trim panel - door.
    G13939316Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Remove the rivets with a rivet cutter or nipper, etc.

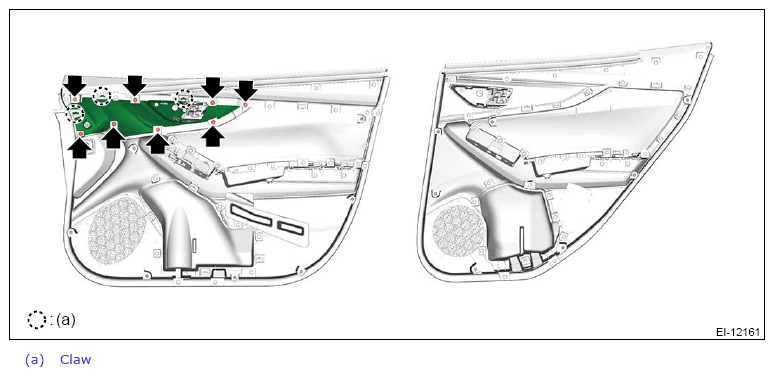

  3. Remove the screws and disengage the claws, and remove the panel - ornament from the trim panel - door.
    G13939317Courtesy of SUBARU OF AMERICA, INC.
