Other Than For C5

Diagnosis start condition:

DTC detecting condition:

Received an immobilizer antenna malfunction signal during unit collation

Trouble symptom:

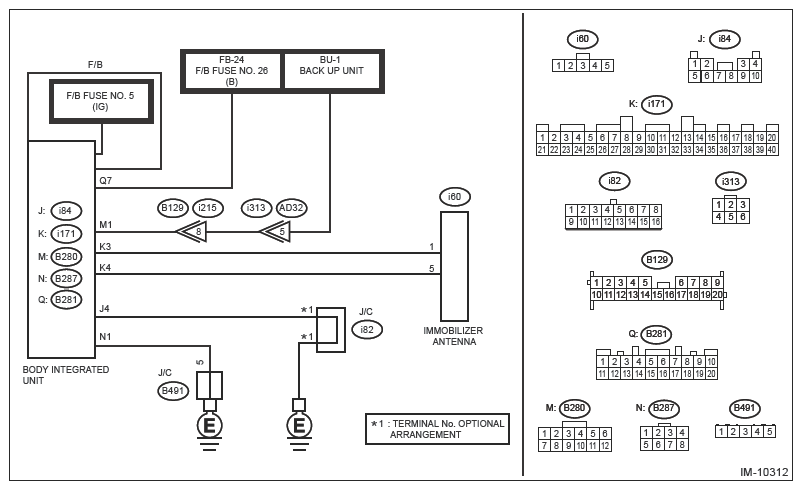

Wiring diagram:

Immobilizer system Ref. to WIRING SYSTEM (IMPREZA MODEL)>IMMOBILIZER SYSTEM>WIRING DIAGRAM .

G13616737Courtesy of SUBARU OF AMERICA, INC.

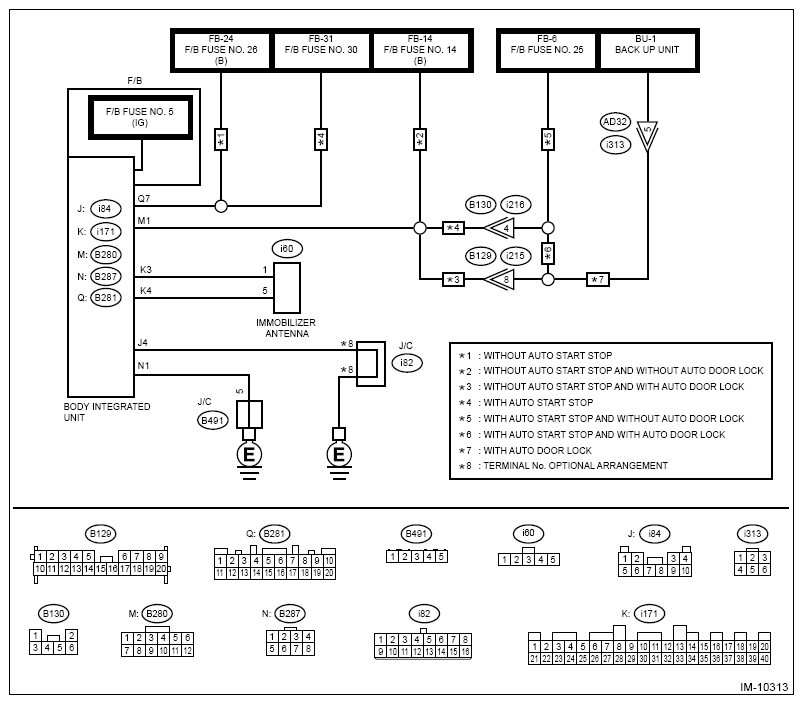

Wiring diagram:

Immobilizer system Ref. to WIRING SYSTEM (CROSSTREK MODEL (EXCEPT FOR HEV))>IMMOBILIZER SYSTEM>WIRING DIAGRAM .

G13616738Courtesy of SUBARU OF AMERICA, INC.
CAUTION: When the body integrated unit is replaced, registration of the immobilizer system is required. For details, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume.
  1. CHECK FUSE  .
    1. Turn the ignition switch to OFF.
    2. Check the fuse.

    Is the check result OK?

    Yes:  Go to  2.

    No:  Replace the fuse. If the fuse blows out easily, repair the short circuit to power supply in harness between the battery and body integrated unit.

  2. CHECK DATA MONITOR  .
    1. Turn the ignition switch to ON.
    2. Using the Subaru Select Monitor, check the following items in the [Data Monitor] of [Body Control]. Ref. to BODY CONTROL (DIAGNOSTICS)>DATA MONITOR .
    • BATT voltage (control)

    Is the display 10 V or more?

    Yes:  Go to  3.

    No:  Check the power supply circuit for body integrated unit.

  3. CHECK IMMOBILIZER ANTENNA UNIT  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector from immobilizer antenna.
    3. Using a tester, measure the resistance between the immobilizer antenna connector terminals.

      Terminals

      No. 1 - No. 5:

    Is the resistance less than 8 Ω?

    Yes:  Replace the immobilizer antenna. Ref. to SECURITY AND LOCKS>IMMOBILIZER ANTENNA .

    No:  Go to  4.

  4. CHECK IMMOBILIZER ANTENNA COMMUNICATION CIRCUIT (OPEN CIRCUIT)  .
    1. Disconnect the connector from body integrated unit.
    2. Measure the resistance between the body integrated unit connector and immobilizer antenna connector.

      Connector and terminal

      (i171) No. 3 - (i60) No. 1:

      (i171) No. 4 - (i60) No. 5:

    Is the resistance less than 10 Ω?

    Yes:  Replace the body integrated unit. Ref. to SECURITY AND LOCKS>BODY INTEGRATED UNIT .

    No:  Repair or replace the open circuit of harness between the body integrated unit connector and immobilizer antenna connector.
