5 Door Model (Hybrid)

CAUTION: Do not detach the antenna except when replacing it. Detaching unnecessarily will lead to insecure attachment of the antenna.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Take out the mat - rear floor.
    1. Release the clips and hooks, and remove the mat - rear floor.
    G13231546Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the clips, and remove the box - sub-trunk.
    G13235148Courtesy of SUBARU OF AMERICA, INC.

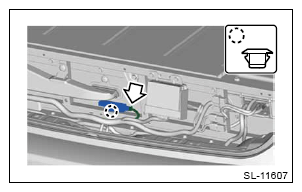

  4. Remove the rear antenna assembly - interior.
    1. Disconnect the connector.
    2. Release the clips, and remove the rear antenna assembly - interior.
    G13235149Courtesy of SUBARU OF AMERICA, INC.
