4 Door Model

CAUTION: Do not detach the antenna except when replacing it. Detaching unnecessarily will lead to insecure attachment of the antenna.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the rear antenna assembly - interior.
    1. Disconnect the connector.
    2. Release the clips, and remove the rear antenna assembly - interior.

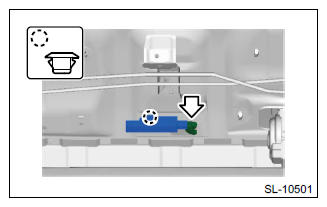

      G11246384Courtesy of SUBARU OF AMERICA, INC.
