Center Antenna

CAUTION:

When replacing the antenna, do not reuse the tapping screw. Always replace with new tapping screws.
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
Airbag system satellite safing sensor is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
NOTE: For the hybrid model, disconnect the battery negative terminal.
Remove the rear seat cushion assembly. Ref. to SEATS>REAR SEAT>REMOVAL .

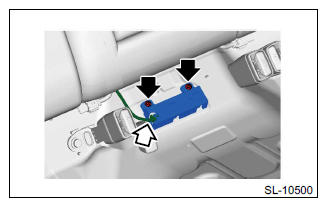

Remove the center antenna assembly - interior.
1. Disconnect the connector.
2. Remove the screw, and remove the center antenna assembly - interior.
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Do not remove the antenna assembly from the cover. If removed, the antenna assembly and cover mounting becomes loose, causing abnormal noises.
