Washer Motor Pump (IMPREZA Model)

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  4. Remove the clips and screws, and turn over the mud guard - front LH.
  5. Disconnect the connector from the motor pump assembly - washer.
  6. Prepare a container before disconnecting the hose - washer, and drain all washer fluid in the tank - washer.

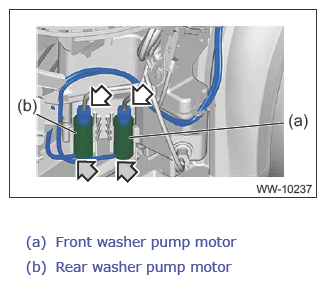

  7. Remove the motor pump assembly - washer.
    G13938631Courtesy of SUBARU OF AMERICA, INC.
