Nozzle - Wiper Arm Washer & Hose (Model With Wiper Arm With Nozzle)

CAUTION: Do not remove the nozzle - wiper arm washer from the arm assembly - windshield wiper assistor.
If nozzle replacement is required, replace the arm assembly - windshield wiper assistor as a unit.
  1. Remove the cowl panel - side and the cowl panel assembly. Ref. to EXTERIOR/INTERIOR TRIM>COWL PANEL>REMOVAL .
    CAUTION: Before removing the cowl panel, use an air blower and nylon brush to sweep gravel from the lower area of the front side of the glass.
  2. Release the claws, and remove the cover - joint from cowl panel assembly.

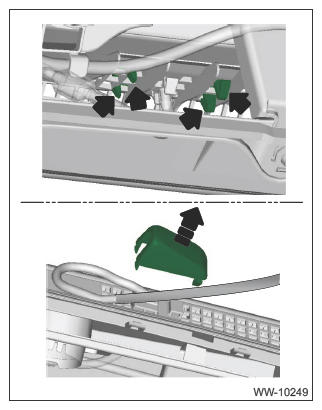

    G11246065Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the hose - wiper arm washer.
    • Impreza model

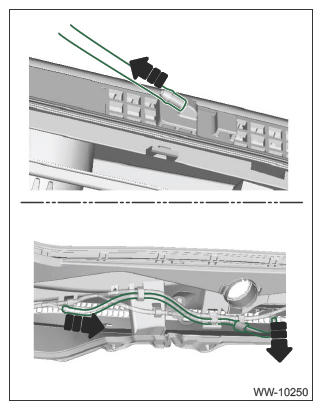

      G11246066Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek model

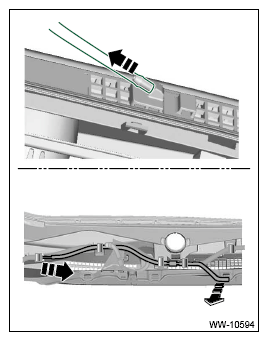

      G13234704Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the arm assembly - windshield wiper. Ref. to WIPER AND WASHER SYSTEMS>FRONT WIPER ARM>REMOVAL .
