Nozzle - Windshield Washer & Hose

Remove the arm assembly - windshield wiper. Ref. to WIPER AND WASHER SYSTEMS>FRONT WIPER ARM>REMOVAL .
Remove the cowl panel - side and the cowl panel assembly. Ref. to EXTERIOR/INTERIOR TRIM>COWL PANEL>REMOVAL .
CAUTION: Before removing the cowl panel, use an air blower and nylon brush to sweep gravel from the lower area of the front side of the glass.

Push the claw using a flat tip screwdriver, etc. wrapped with protection tape.
When the nozzle - windshield washer lifts up, pull out the nozzle - windshield washer using a clip remover, etc.

Disconnect the hose - windshield washer, and remove the nozzle - windshield washer.

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the hose - windshield washer as necessary.

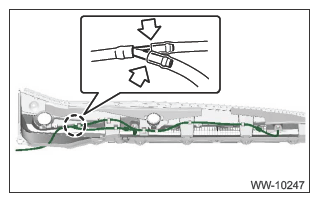

Model with wiper arm without nozzle (Impreza model)

Courtesy of SUBARU OF AMERICA, INC.

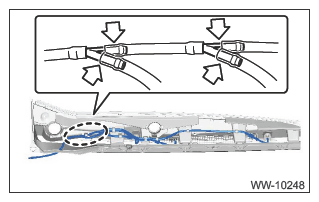

Model with wiper arm without nozzle (Crosstrek model)

Courtesy of SUBARU OF AMERICA, INC.

Model with wiper arm with nozzle (Impreza model)

Courtesy of SUBARU OF AMERICA, INC.

Model with wiper arm with nozzle (Crosstrek model)

Courtesy of SUBARU OF AMERICA, INC.
