Nozzle - Wiper Arm Washer (Model With Wiper Arm With Nozzle)
CAUTION:
Check and adjust the spray position of the nozzle - wiper arm at the position where the wiper arm stops.
- Turn the wiper switch to OFF position.

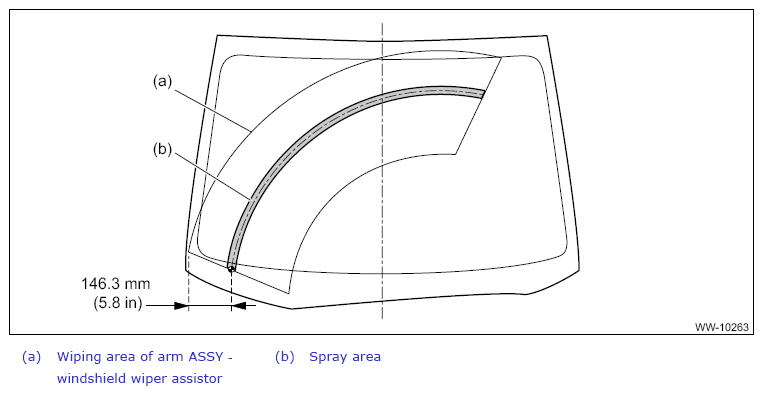

- While the vehicle is stopped, check that the washer spray position is as shown in the figure.
- After inspection, if the spray position is really out of the specified range, replace with a new arm assembly - windshield wiper assistor.
 Courtesy of SUBARU OF AMERICA, INC.
|
