Nozzle - Windshield Washer

  1. Turn the wiper switch to OFF position.
  2. While the vehicle is at a standstill, insert the washer nozzle adjustment tool (a) into upper side (b) and lower side (c) of the nozzle - windshield washer to perform necessary adjustment.
    G13234707Courtesy of SUBARU OF AMERICA, INC.
    CAUTION: Washer nozzle is made of resin. If precision screwdriver (a) or equivalent is inserted into discharge port for adjustment, the discharge port can be deformed, and washer fluid cannot be sprayed.
    G13234708Courtesy of SUBARU OF AMERICA, INC.
  3. Adjust the washer injection position within the area shown in the figure.
    1. Route a piece of string or similar from the outside of the glass so that it passes through the center of the inner mirror mounting portion and the center of the sunload sensor, and then fix it on the glass with adhesive tape.
    2. Make adjustment marks shown in the figure from the inside of the vehicle using a water-based pen.
    3. Remove the string or similar, then spray washer fluid.
    4. Adjust the nozzle so that the spray position is within the marked area.
    5. When adjustment is completed, thoroughly clean the inside of the glass.

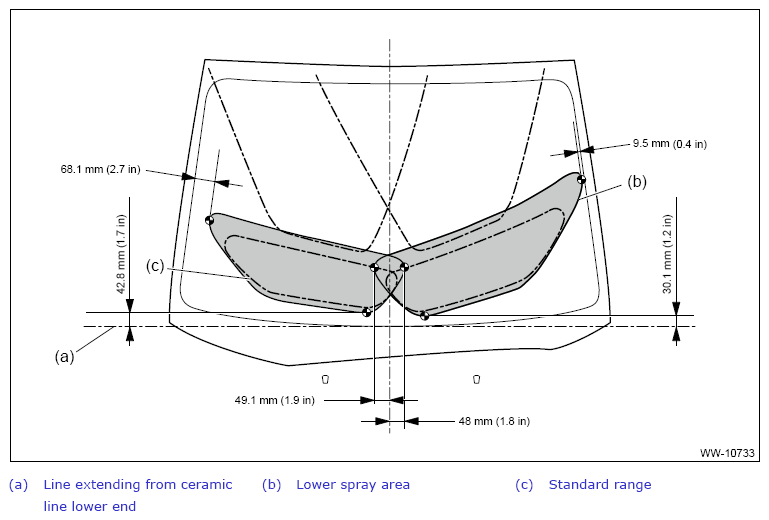

      • Impreza model
        G13938681Courtesy of SUBARU OF AMERICA, INC.

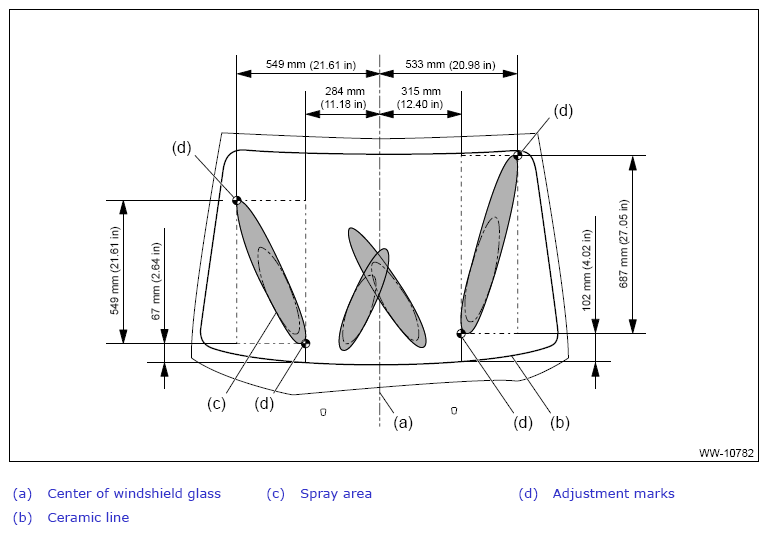

      • Crosstrek model
        G13938682Courtesy of SUBARU OF AMERICA, INC.
