Front Door Partition Glass

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the front door glass. Ref. to GLASS/WINDOW/MIRRORS>FRONT DOOR GLASS>REMOVAL>FRONT DOOR GLASS .
  3. Remove the glass - front door partition.
    CAUTION: Do not damage the sash or sash tape OUT while removing.

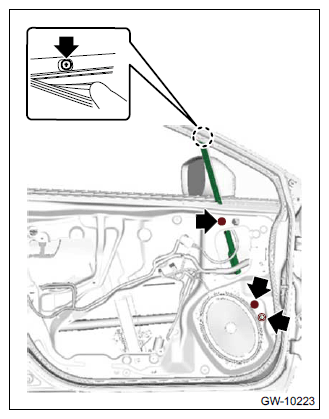

    1. Partially turn over the running channel - front door.
    2. Turn over the weather strip - door, and remove the screws.
    3. Remove the bolts, and then remove the sash assembly - partition while lowering it.
      G11246114Courtesy of SUBARU OF AMERICA, INC.

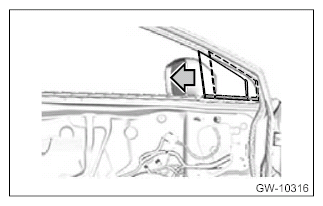

    4. Remove the glass - front door partition.
      G12398781Courtesy of SUBARU OF AMERICA, INC.
