Manual seat LH (Impreza model)

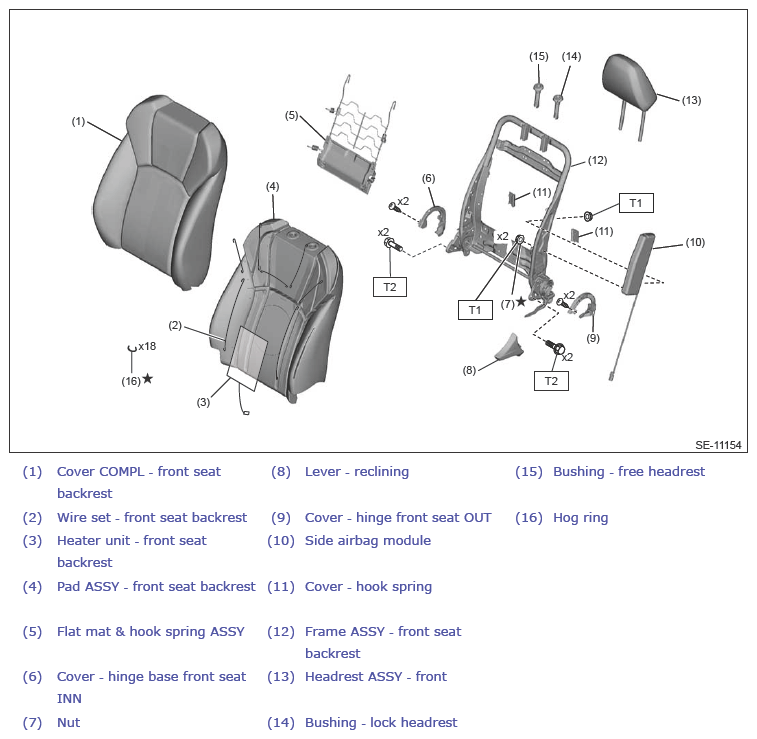

Fig 1: Front Seat Components - Manual Seat LH, Impreza Model (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

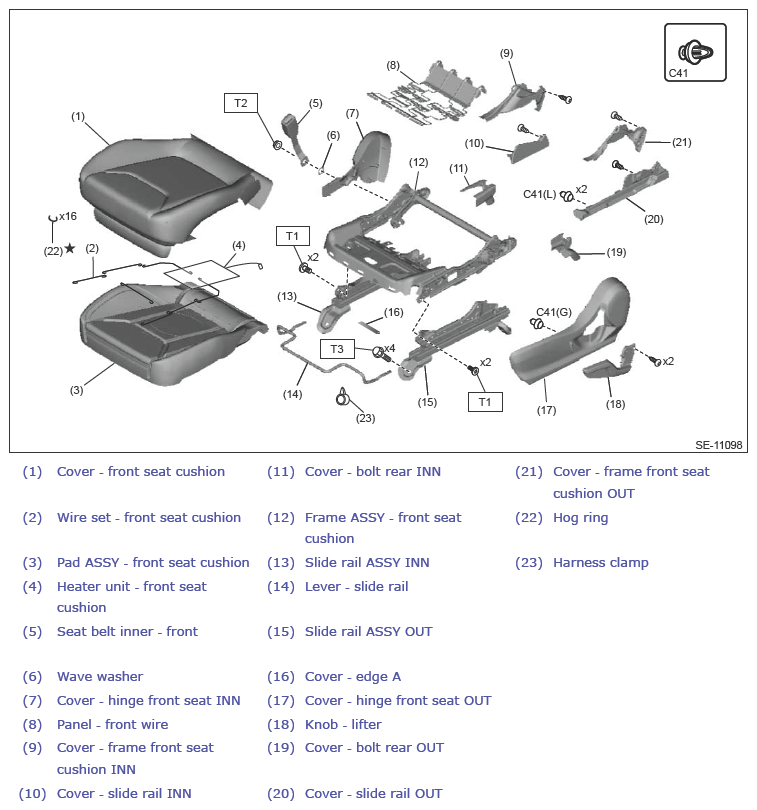

Fig 2: Front Seat Components - Manual Seat LH, Impreza Model (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17.6 (1.8, 13)

T2: 38 (3.9, 28)

T3: 53 (5.4, 39.1)
