Pocket Light

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the heater control assembly. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>CONTROL PANEL>REMOVAL .
  3. Remove the light - pocket.
    1. Disconnect the connector.

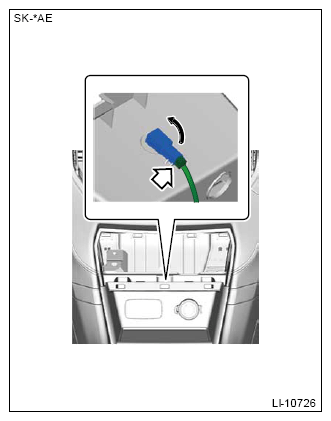

    2. Rotate in the direction of arrow shown in the figure to remove the light - pocket.
      G13592842Courtesy of SUBARU OF AMERICA, INC.
