Door Speaker

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .

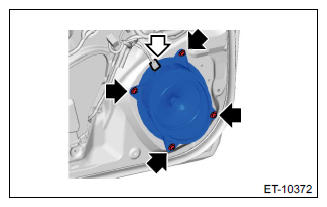

  3. Remove the speaker assembly - front.
    1. Disconnect the connector.
    2. Remove the screws and remove the speaker assembly - front.
      G11246749Courtesy of SUBARU OF AMERICA, INC.
