Glove Box Light

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the pocket assembly. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .

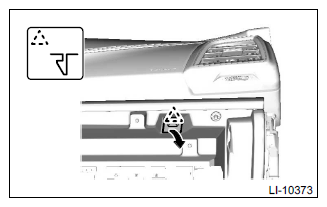

  3. Remove the light - pocket cover.
    CAUTION: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.
    1. Release the claws.
    2. Disconnect the connector, and remove the light - pocket cover.
      G11246001Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the light - pocket.
    1. Release the claws, and remove the light - pocket.
      G11246002Courtesy of SUBARU OF AMERICA, INC.
