EyeSight STEERING SWITCH

Measure the resistance between connector terminals.

Preparation tool: Circuit tester

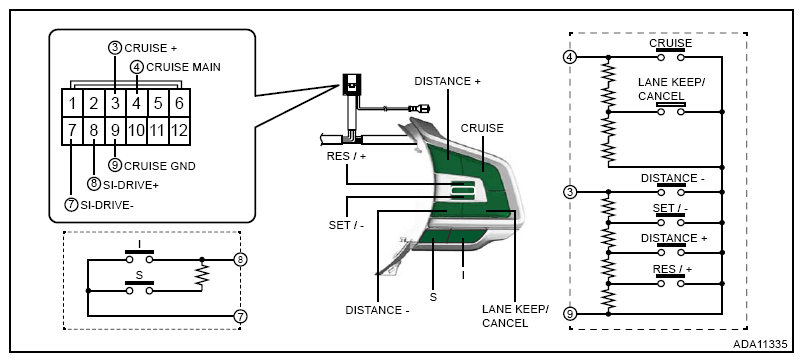

Except for hybrid model (model without front view camera)

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions		Standard
3 - 9	DISTANCE-SET/- DISTANCE+RES/+	All OFF	Approx. 4, 020 Ω
	DISTANCE-	ON	Less than 1 Ω
	SET/-	ON	Approx. 250 Ω
	DISTANCE+	ON	Approx. 680 Ω
	RES/+	ON	Approx. 1, 470 Ω
4 - 9	CRUISE LANE KEEP/CANCEL	All OFF	Approx. 4, 020 Ω
	CRUISE	ON	Less than 1 Ω
	LANE KEEP/CANCEL	ON	Approx. 680 Ω
8 - 7	IS	All OFF	Approx. 3 MΩ or more
	I	ON	Less than 1 Ω
	S	ON	Approx. 1, 800 Ω

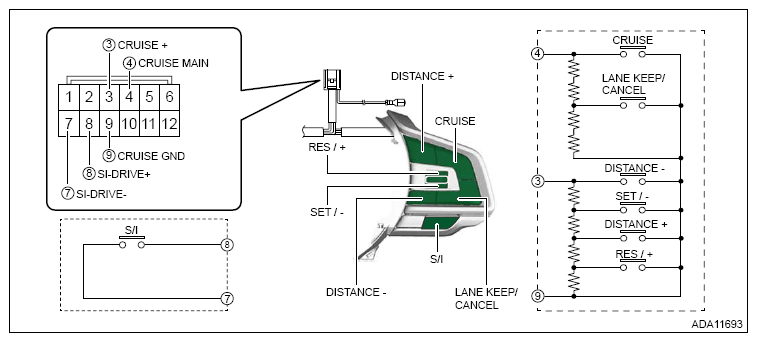

Except for hybrid model (model with front view camera)

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions		Standard
3 - 9	DISTANCE-SET/- DISTANCE+RES/+	All OFF	Approx. 4, 020 Ω
	DISTANCE-	ON	Less than 1 Ω
	SET/-	ON	Approx. 250 Ω
	DISTANCE+	ON	Approx. 680 Ω
	RES/+	ON	Approx. 1, 470 Ω
4 - 9	CRUISE LANE KEEP/CANCEL	All OFF	Approx. 4, 020 Ω
	CRUISE	ON	Less than 1 Ω
	LANE KEEP/CANCEL	ON	Approx. 680 Ω
8 - 7	S/I	OFF	Approx. 3 MΩ or more
8 - 7	S/I	ON	Less than 1 Ω

Hybrid model

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions		Standard
3 - 9	DISTANCE-SET/- DISTANCE+ RES/+	All OFF	Approx. 4, 020 Ω
	DISTANCE-	ON	Less than 1 Ω
	SET/-	ON	Approx. 250 Ω
	DISTANCE+	ON	Approx. 680 Ω
	RES/+	ON	Approx. 1, 470 Ω
4 - 9	CRUISE LANE KEEP	All OFF	Approx. 4, 020 Ω
	CRUISE	ON	Less than 1 Ω
	LANE KEEP	ON	Approx. 680 Ω
8 - 7	IS	All OFF	Approx. 3 MΩ or more
	I	ON	Less than 1 Ω
	S	ON	Approx. 1, 800 Ω

Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.

CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
Incorrect polarity connection may cause LED damage inside the switch.

Terminal No.	Inspection conditions	Specification
10 (+) - 11 (-)	Apply battery voltage.	Light ON

Replace the EyeSight steering switch if it is found defective.
