Front Antenna
CAUTION:
Do not detach the antenna except when replacing it. Detaching unnecessarily will lead to insecure attachment of the antenna.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY
.NOTE:
- For the hybrid model, disconnect the battery negative terminal.
- For CVT models, release the shift lock and shift the select lever to the "N" position.
- Remove the cover assembly - front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
- Remove the front antenna assembly - interior.

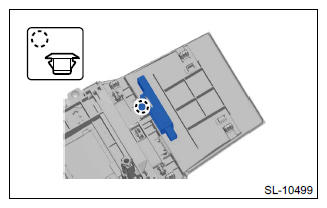

- Release the clips, and remove the front antenna assembly - interior.
