Inverter Tank: Removal

  1. Drain engine coolant. (Inverter assembly side) Ref. to COOLING (H4DO(HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT>INVERTER ASSEMBLY SIDE .

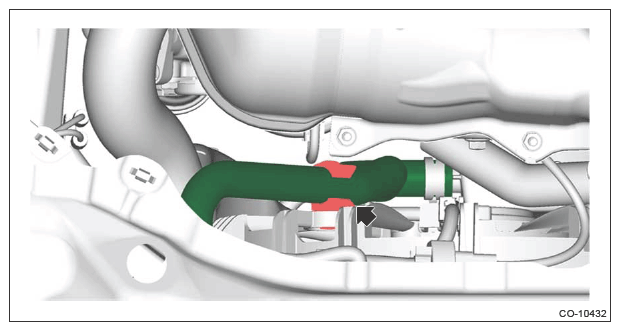

  2. Remove the inverter radiator outlet hose from the clamp.
    G13231349Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .

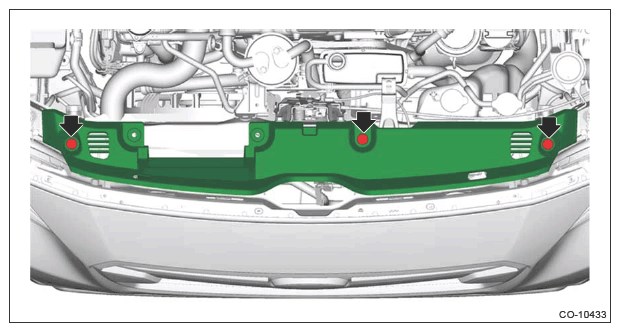

  4. Remove the cover UPR - front.
    G13231350Courtesy of SUBARU OF AMERICA, INC.

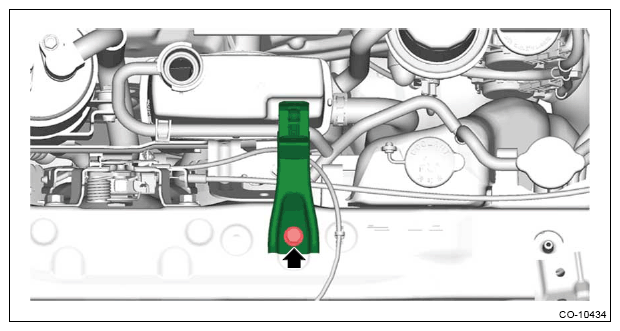

  5. Remove the bracket - hood stay.
    G13231351Courtesy of SUBARU OF AMERICA, INC.

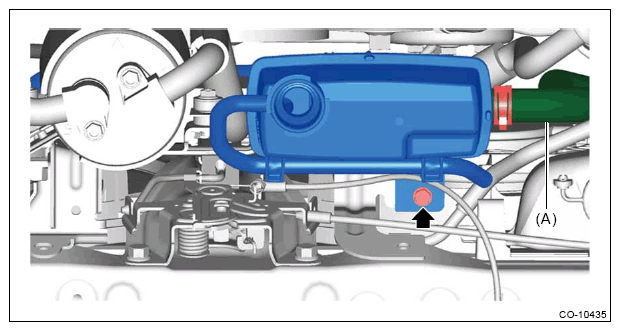

  6. Remove the bolt securing the inverter tank, disconnect the inverter radiator outlet hose (A) and remove the inverter tank.
    G13231352Courtesy of SUBARU OF AMERICA, INC.

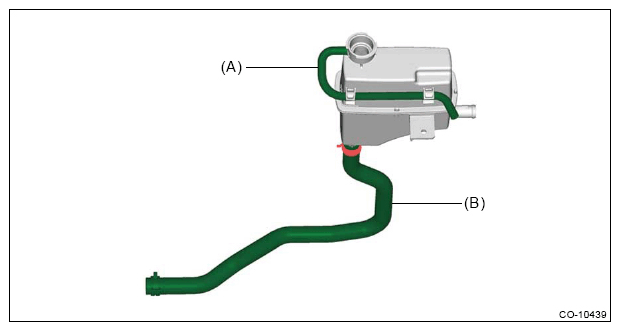

  7. Disconnect the over flow hose (A) and inverter tank outlet hose (B) from the inverter tank.
G13231353Courtesy of SUBARU OF AMERICA, INC.
