Power Transistor: Removal

  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket assembly and the back panel - pocket. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
  3. Remove the heat pump control module. Ref. to AIR CONDITIONER (HEV)>CONTROL UNIT>REMOVAL .

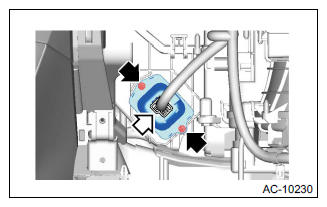

  4. Remove the power transistor.
    1. Disconnect the connector.
    2. Remove the screws and remove the power transistor.
      G11245657Courtesy of SUBARU OF AMERICA, INC.
