Components With Torque Specifications: Compressor

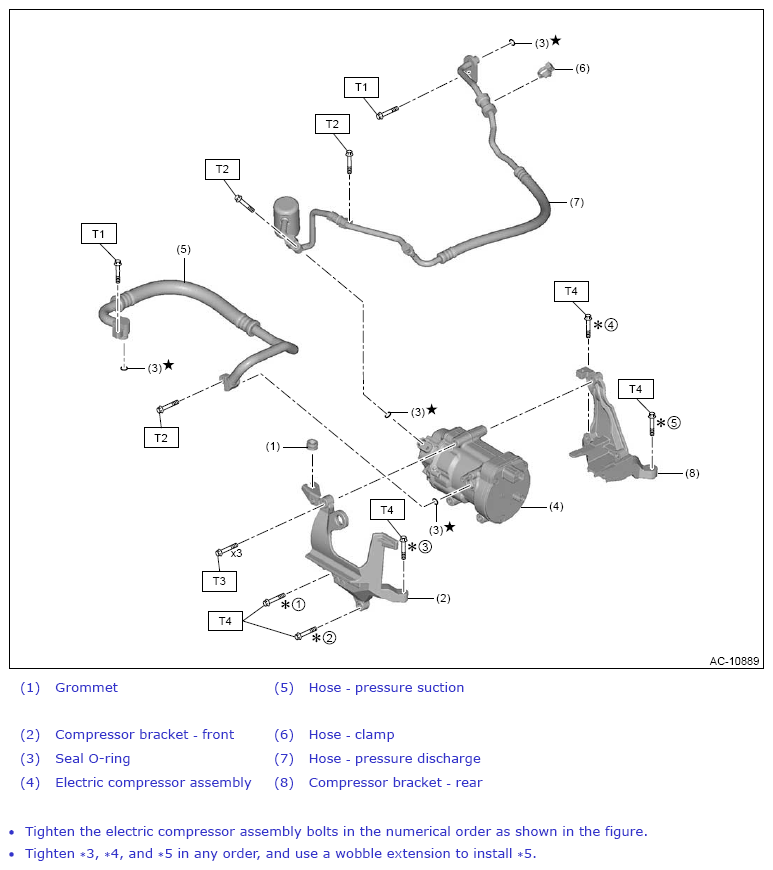

Fig 1: Compressor Components
G13938187Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 10 (1.0, 7.4)

T3: 26.5 (2.7, 19.5)

T4: 36 (3.7, 26.6)
