Blower Motor Unit

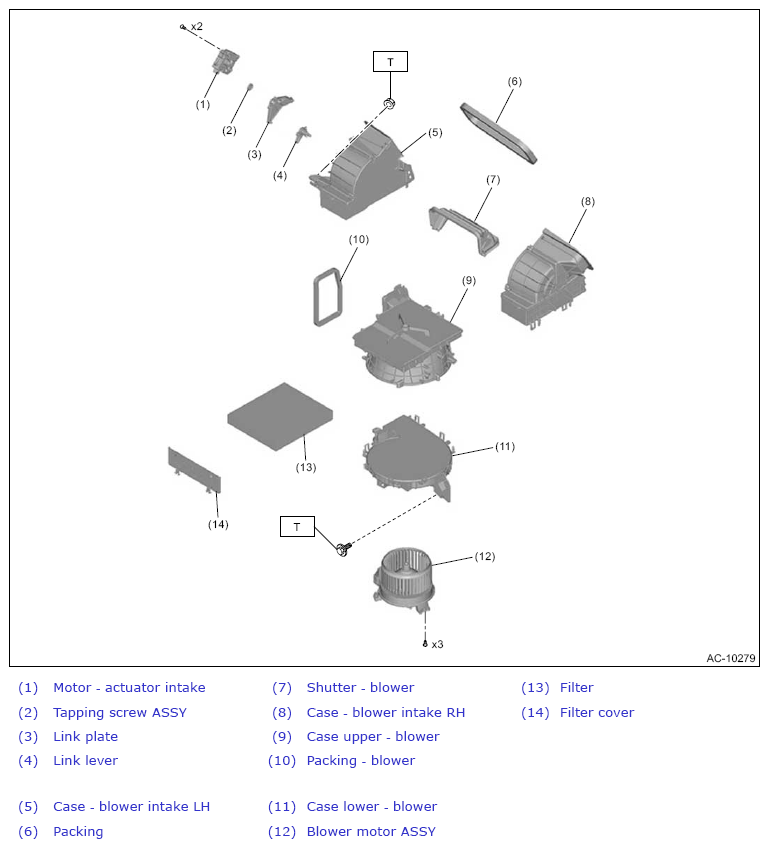

Fig 1: Blower Motor Unit Components

G13938182

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
