Heat Pump Control Module

  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket assembly and the back panel - pocket. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .

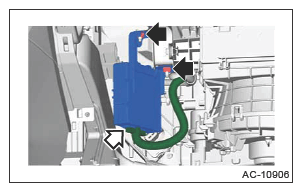

  3. Remove the heat pump control module.
    1. Disconnect the connector.
    2. Remove the nuts and remove the heat pump control module.
      G13234279Courtesy of SUBARU OF AMERICA, INC.
