Control Panel: Removal

  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille assembly - CTR ventilation. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .
  4. Remove the heater control assembly.
    1. Disconnect the connector.

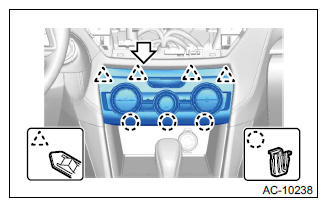

    2. Press the heater control assembly from behind to release the clips and claws, and then remove the heater control assembly.
      G11245665Courtesy of SUBARU OF AMERICA, INC.

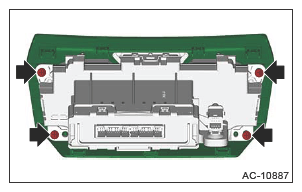

    3. Remove the screws and remove the panel assembly - heater.
      G13234269Courtesy of SUBARU OF AMERICA, INC.
