Section 9 (Brake Control System (Diagnostics) (Except HEV)): Electrical Component Location: Location

WARNING: This page is about a different variant/trim than selected.

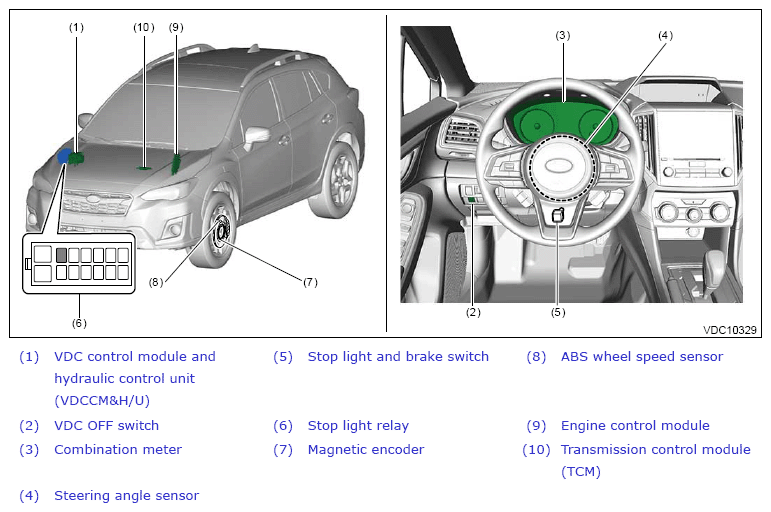

G13942595Courtesy of SUBARU OF AMERICA, INC.

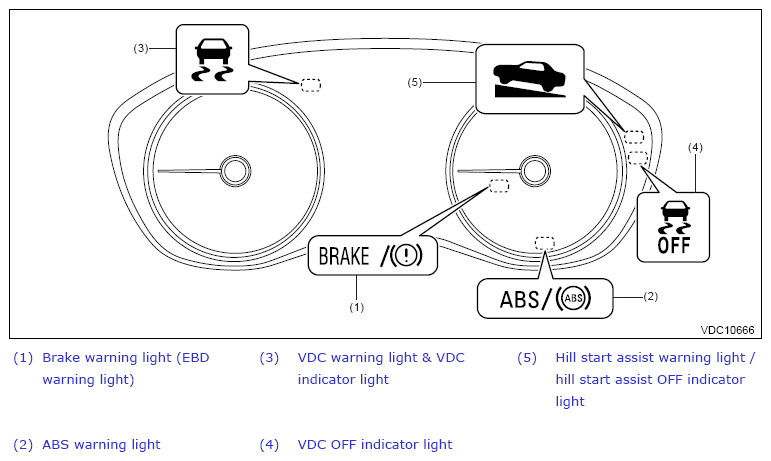

G13942596Courtesy of SUBARU OF AMERICA, INC.
