Components With Torque Specifications: Starter
WARNING: This page is about a different variant/trim than selected.

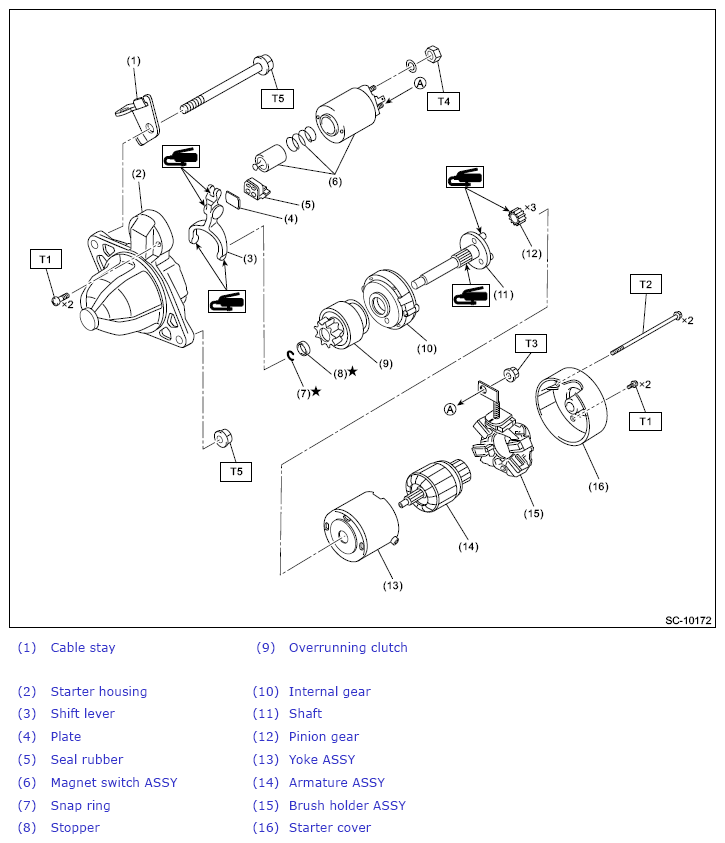

- CVT model (model without Auto Start Stop)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 3.4 (0.3, 2.5)
T2: 3.5 (0.4, 2.6)
T3: 10.7 (1.1, 7.9)
T4: 11 (1.1, 8.1)
T5: 50 (5.1, 36.9)

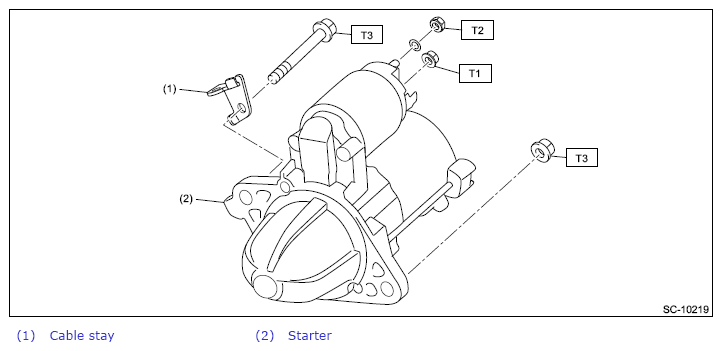

- CVT model (model with Auto Start Stop)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 10 (1.0, 7.4)
T2: 11 (1.1, 8.1)
T3: 50 (5.1, 36.9)
- MT model
Tightening torque: N.m (kgf-m, ft-lb)
T1: 1.4 (0.1, 1.0)
T2: 6 (0.6, 4.4)
T3: 7.5 (0.8, 5.5)
T4: 10 (1.0, 7.4)
T5: 11 (1.1, 8.1)
T6: 50 (5.1, 36.9)
