Model With Power Amplifier

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

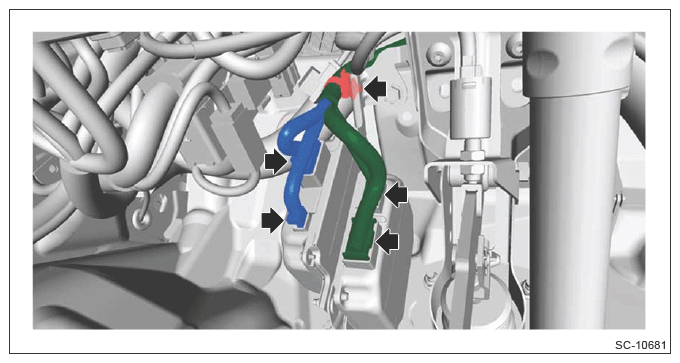

  2. Disconnect the connector from the Auto Start Stop DC/DC converter 1 and Auto Start Stop DC/DC converter 2, and remove the clips.
    G13601367Courtesy of SUBARU OF AMERICA, INC.

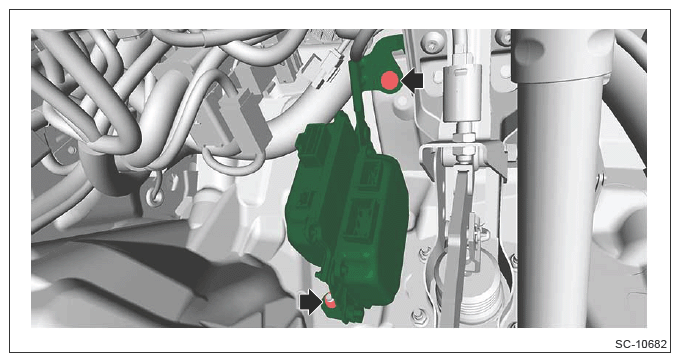

  3. Remove the Auto Start Stop DC/DC converter 1 and Auto Start Stop DC/DC converter 2 from the vehicle.
    G13601368Courtesy of SUBARU OF AMERICA, INC.

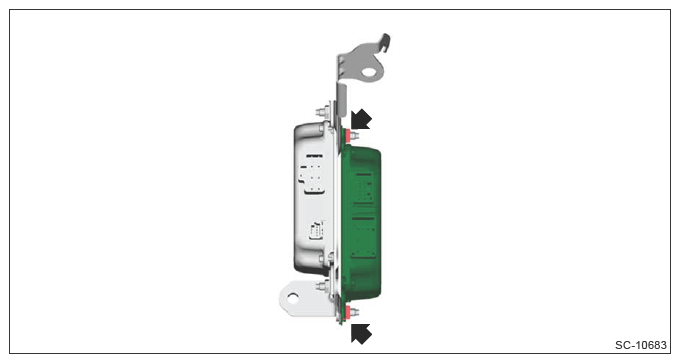

  4. Remove the Auto Start Stop DC/DC converter 1 from the bracket.
    G13601369Courtesy of SUBARU OF AMERICA, INC.
