Except For Model With Power Amplifier
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

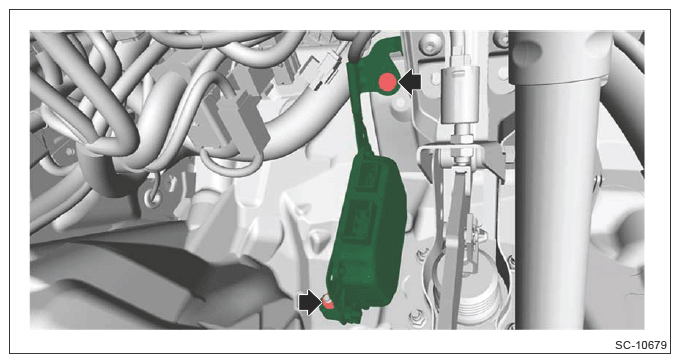

- Disconnect the connector from the Auto Start Stop DC/DC converter 1 and remove the clip.
- Remove the Auto Start Stop DC/DC converter 1 from the vehicle.
- Remove the Auto Start Stop DC/DC converter 1 from the bracket.
