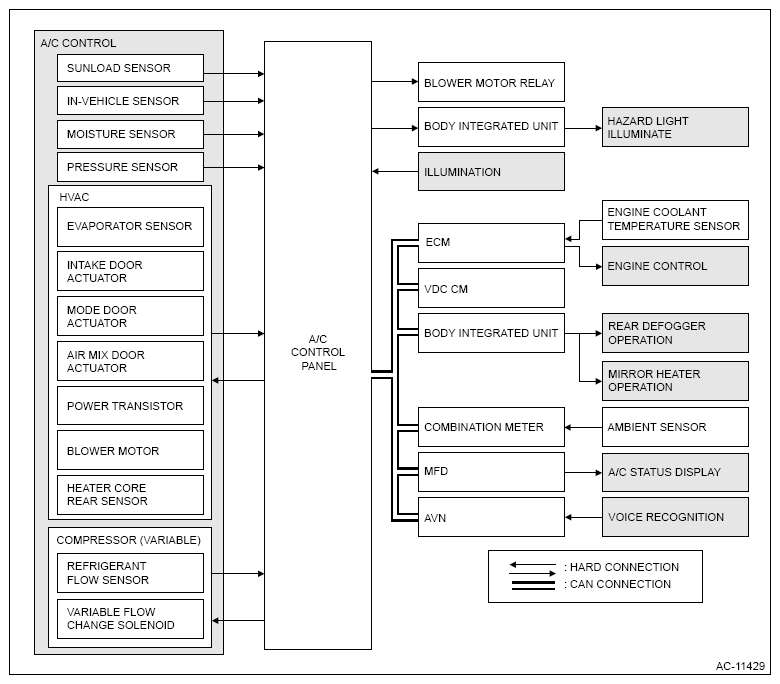

System Block Diagram
- A/C control and status display
Using the CAN communication, perform A/C control from vehicle information and each sensor value to actuate the A/C system device. Also display A/C status on MFD by CAN output of A/C status.
- Hazard is ON
Output hazard switch signals to body integrated unit. The control of hazard illumination is carried out via body integrated unit.
- Illumination
Adjust the A/C control panel lighting according to input (body integrated unit and combination meter).
- Engine control
Transmit the A/C status via CAN for engine control.
- Rear defogger operation
Output switch signals to body integrated unit. The control of rear defogger operation is carried out via body integrated unit.
- Mirror heater operation
Output switch signals to body integrated unit. The control of mirror heater operation is carried out via body integrated unit.
- Voice recognition
Change the A/C setting according to voice input in combination with AVN.
