Section 26 (Auto Start Stop (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different variant/trim than selected.

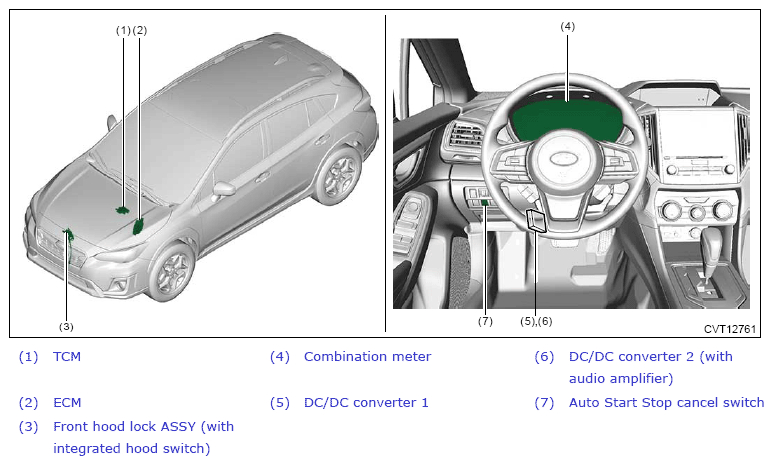

G13942075Courtesy of SUBARU OF AMERICA, INC.

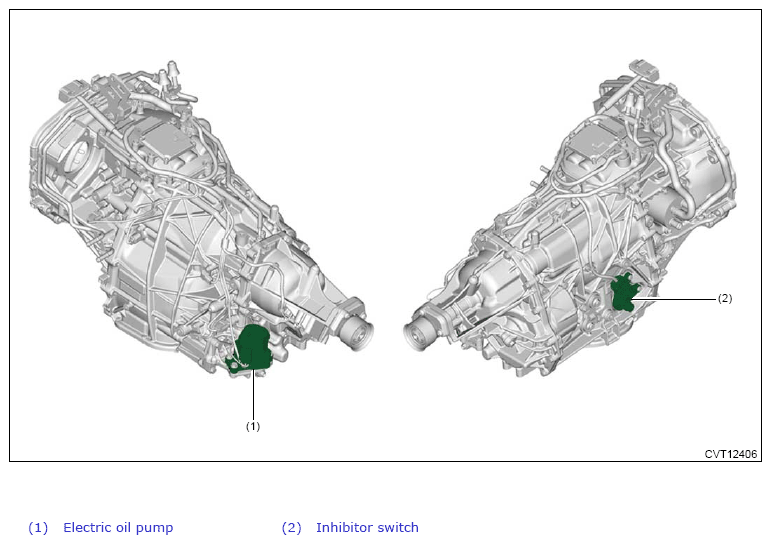

G13942076Courtesy of SUBARU OF AMERICA, INC.

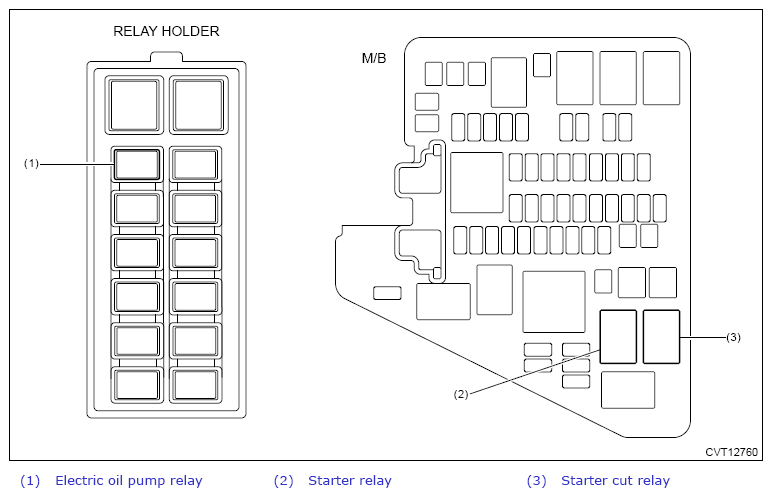

G13942077Courtesy of SUBARU OF AMERICA, INC.
