Condition Check
WARNING: This page is about a different variant/trim than selected.
The illumination status of the Auto Start Stop indicator, Auto Start Stop OFF indicator and Auto Start Stop deactivation indicator is related to the vehicle status as follows.

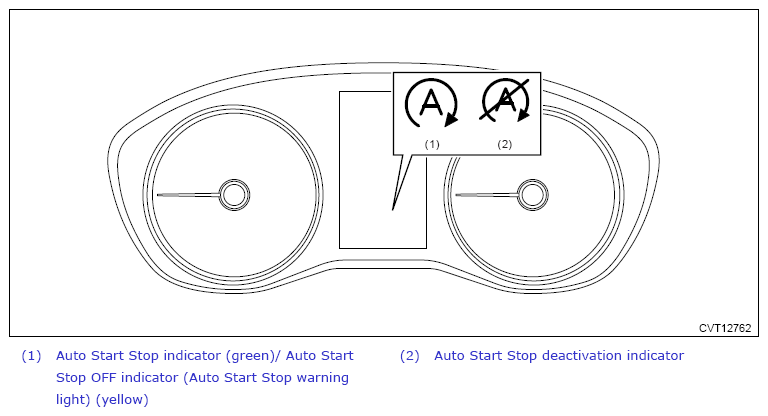

- NORMAL METER MODEL
 Courtesy of SUBARU OF AMERICA, INC.
|

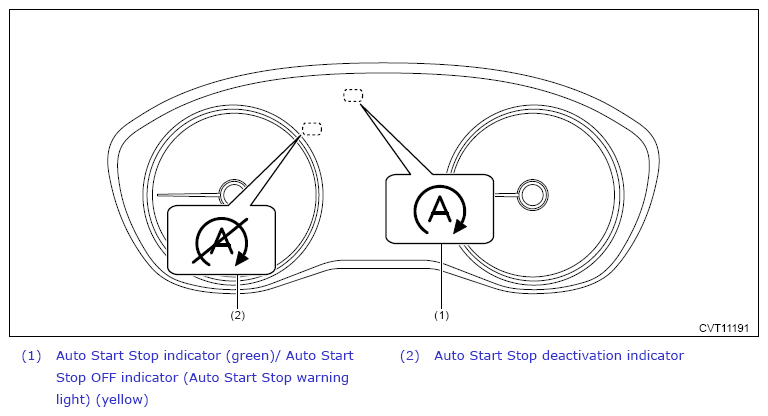

- COLOR TFT METER MODEL
 Courtesy of SUBARU OF AMERICA, INC.
|
| Vehicle condition |
Ignition switch ON |
When Auto Start Stop operation condition is not met |
During Auto Start Stop |
During Auto Start Stop cancellation |
Malfunction occurs during Auto Start Stop. |
| Auto Start Stop indicator status |
Light OFF |
Light OFF |
ON (green) |
Light OFF |
Light OFF |
| Auto Start Stop OFF indicator status |
ON (yellow) |
Light OFF |
Light OFF |
ON (yellow) |
Blink (yellow) |
| Auto Start Stop deactivation indicator status |
Light OFF |
Light ON |
Light OFF |
Light OFF |
Light OFF |
