Thermostat Cover

WARNING: This page is about a different variant/trim than selected.
  1. Install a new gasket to the thermostat. (2.0 L model)
    NOTE: Align the positions of the jiggle pin (a) and the positioning rib (b) of the gasket.
    G11253591Courtesy of SUBARU OF AMERICA, INC.
  2. Install the thermostat. (2.0 L model)
    NOTE: Align the positions of groove (a) of the oil pan upper and the positioning rib (b) of the gasket.
    G11253592Courtesy of SUBARU OF AMERICA, INC.

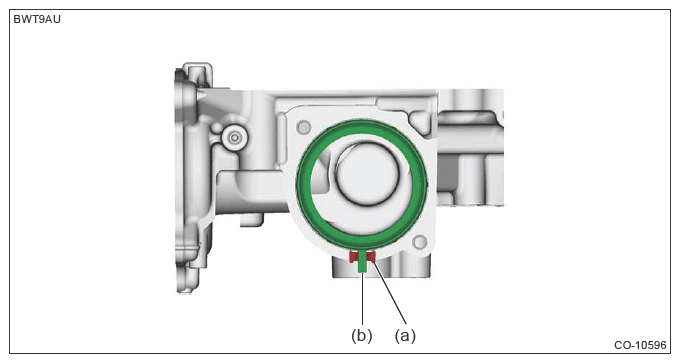

  3. Install a new gasket to the oil pan upper. (2.5 L model)
    NOTE: Align the positions of groove (a) of the oil pan upper and the positioning rib (b) of the gasket.
    G13591073Courtesy of SUBARU OF AMERICA, INC.
  4. Install the thermostat cover.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  5. Connect the radiator outlet hose.
  6. Install the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>INSTALLATION .
  7. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  8. Fill engine coolant.

    2.0 L model:  Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT>2.0 L MODEL .

    2.5 L model:  Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT>2.5 L MODEL .
