Radiator Fan and Fan Motor Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

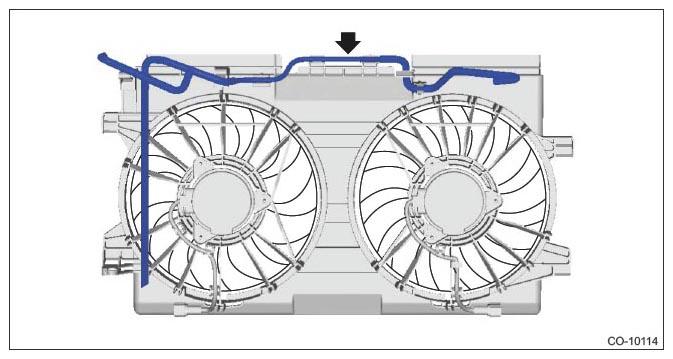

  1. Remove the over flow hose and the over flow pipe.
    G11253614Courtesy of SUBARU OF AMERICA, INC.

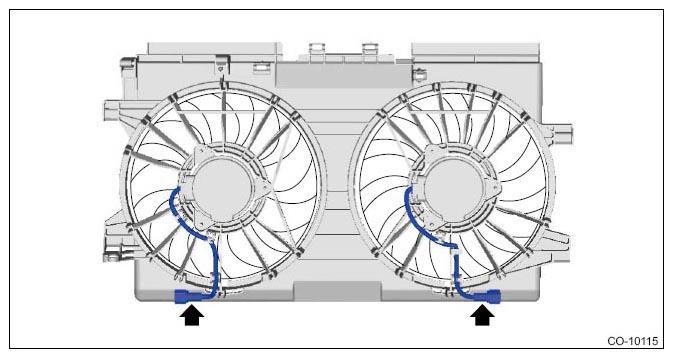

  2. Remove the main fan motor harness and the sub fan motor harness.
    G11253615Courtesy of SUBARU OF AMERICA, INC.

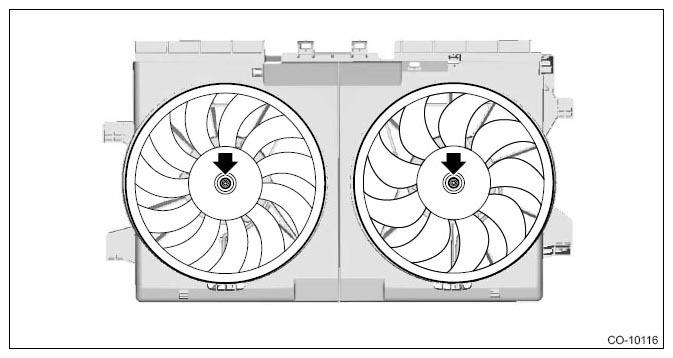

  3. Remove the radiator main fan and radiator sub fan.
    NOTE: Remove locking agent from the thread of the main fan motor and the sub fan motor.
    G11253616Courtesy of SUBARU OF AMERICA, INC.

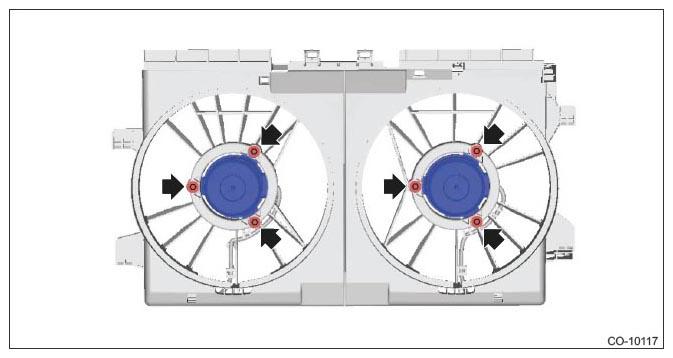

  4. Remove the main fan motor and the sub fan motor.
    G11253617Courtesy of SUBARU OF AMERICA, INC.
