Active Grille Shutter: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Active grille shutter is installed on only some models.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front bumper. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .

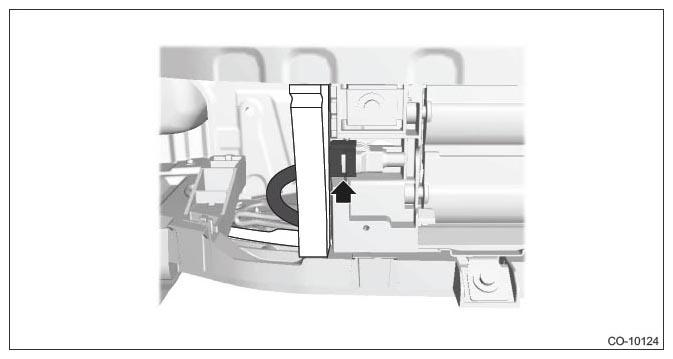

  3. Disconnect the connector from ambient sensor.
    G11253625Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from the active grille shutter actuator.
    G11253626Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the active grille shutter.
    G11253627Courtesy of SUBARU OF AMERICA, INC.

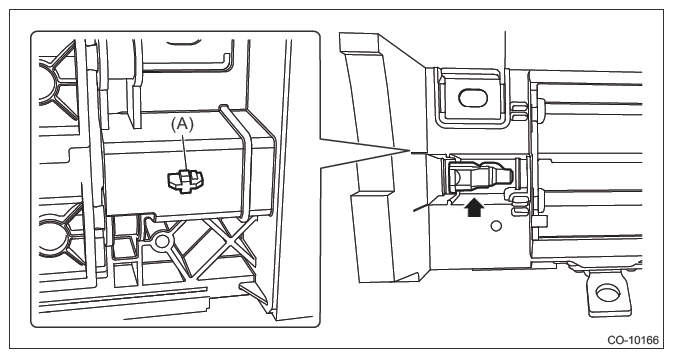

  6. Remove the clip (A) to remove the ambient sensor.
    G11253628Courtesy of SUBARU OF AMERICA, INC.
