DTC P24BA: EVAP System Leak Detection Pump Pressure Sensor Circuit Low: Notes

WARNING: This page is about a different variant/trim than selected.

1. -

DTC detecting condition:

Immediately at fault recognition

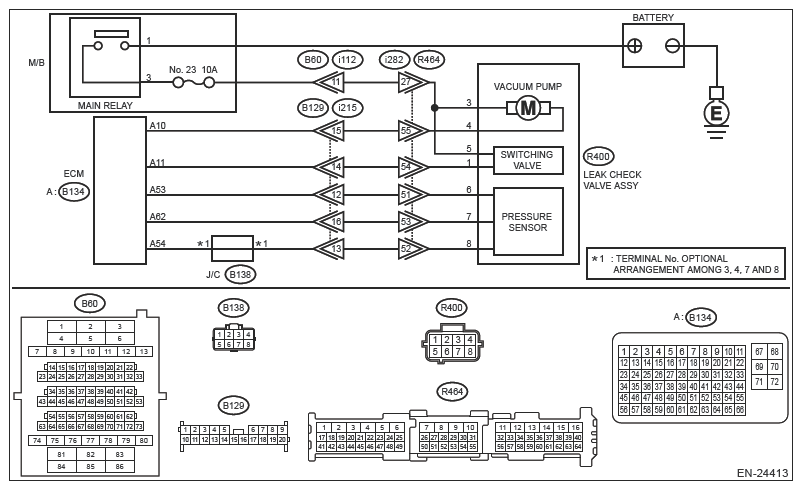

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM (IMPREZA MODEL)>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM . Ref. to WIRING SYSTEM (CROSSTREK MODEL (EXCEPT FOR HEV))>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0 (EXCEPT FOR HEV))>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0 (EXCEPT FOR HEV))>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

CHECK DATA MONITOR .
1. Turn the ignition switch to ON.
2. Using the Subaru Select Monitor or a general scan tool, read the value of [Barometric Pressure].
  NOTE:
  - Subaru Select Monitor
    For detailed operation procedures, refer to "Common (Diagnostics)". Ref. to COMMON (DIAG)>DATA MONITOR .
  - General scan tool
    For detailed operation procedures, refer to the general scan tool operation manual.
  Is the value of [Barometric Pressure] 34 kPa or less?

  Yes: Go to 2.

  No: Even if DTC is detected, the circuit has returned to a normal condition at this time.

  Reproduce the failure, and then perform the diagnosis again.

  NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
CHECK POWER SUPPLY OF LEAK CHECK VALVE ASSEMBLY (SHORT TO GROUND) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from the leak check valve assembly.
3. Turn the ignition switch to ON.
4. Measure the voltage between the leak check valve assembly connector and chassis ground.
  Connector and terminal

  (R400) No. 6 (+) - Chassis ground (-):

  Is the voltage 4.5 V or more?

  Yes: Go to 3.

  No: Repair the harness and connector.
  NOTE:
  In this case, repair the following item:
  - Open circuit in harness between ECM connector and the leak check valve assembly connector
  - Poor contact of ECM connector
  - Poor contact of coupling connector
CHECK HARNESS BETWEEN ECM AND LEAK CHECK VALVE ASSEMBLY (SHORT TO GROUND) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Measure the resistance between ECM connector and chassis ground.
  Connector and terminal

  (B134) No. 62 - Chassis ground:

  Is the resistance 1 MΩ or more?

  Yes: Go to 4.

  No: Repair the short circuit to ground in harness between ECM connector and leak check valve assembly connector.
CHECK FOR POOR CONTACT .
Check for poor contact of leak check valve assembly connector.

Is there poor contact in the leak check valve assembly connector?

Yes: Repair the poor contact in the leak check valve assembly connector.

No: Replace the leak check valve assembly. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (EXCEPT FOR HEV))>LEAK CHECK VALVE ASSEMBLY .
