DTC P2128: Throttle/Pedal Position Sensor/Switch "E" Circuit High: Notes

WARNING: This page is about a different variant/trim than selected.

1. -

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

Improper idling
Poor driving performance

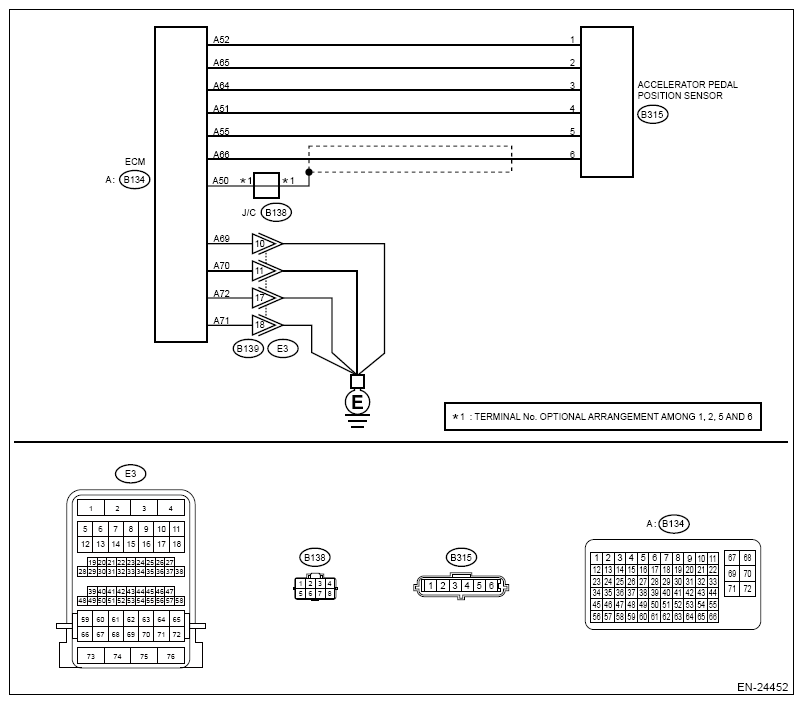

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM (IMPREZA MODEL)>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM . Ref. to WIRING SYSTEM (CROSSTREK MODEL (EXCEPT FOR HEV))>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM .
IMPREZA MODEL

Courtesy of SUBARU OF AMERICA, INC.
CROSSTREK MODEL

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0 (EXCEPT FOR HEV))>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0 (EXCEPT FOR HEV))>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR (OPEN) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Disconnect the connector from the accelerator pedal position sensor.
4. Measure the resistance of harness between ECM connector and accelerator pedal position sensor connector.
  Connector and terminal

  (B134) No. 64 - (B315) No. 3:

  (B134) No. 65 - (B315) No. 2:

  Is the resistance less than 1 Ω?

  Yes: Go to 2.

  No: Repair the open circuit of harness between ECM connector and accelerator pedal position sensor connector.
CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR (OPEN) .
1. Connect the connector to ECM.
2. Measure the resistance between accelerator pedal position sensor connector and chassis ground.
  Connector and terminal

  (B315) No. 2 - Chassis ground:

  Is the resistance less than 1 Ω?

  Yes: Go to 3.

  No: Repair the harness and connector.
  NOTE:
  In this case, repair the following item:
  - Open circuit of harness between ECM connector and engine ground
  - Poor contact of ECM connector
CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR (SHORT TO POWER SUPPLY) .
1. Turn the ignition switch to ON.
2. Measure the voltage between accelerator pedal position sensor connector and chassis ground.
  Connector and terminal

  (B315) No. 3 (+) - Chassis ground (-):

  Is the voltage 5 V or more?

  Yes: Repair the short circuit to power supply in harness between ECM connector and accelerator pedal position sensor connector.

  No: Go to 4.
CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR (SHORT BETWEEN LINES) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Measure the resistance between ECM connectors.
  Connector and terminal

  (B134) No. 52 - (B134) No. 64:

  Is the resistance 1 MΩ or more?

  Yes: Repair the poor contact of accelerator pedal position sensor connector. Replace the accelerator pedal assembly if defective. : Ref. to SPEED CONTROL SYSTEMS (H4DO (EXCEPT FOR HEV))>ACCELERATOR PEDAL .

  No: Repair the short circuit between lines in harness between ECM connector and accelerator pedal position sensor connector.
