Sunload Sensor (Auto A/C Model): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the multi-function display. Ref. to INSTRUMENTATION/DRIVER INFO>MULTI-FUNCTION DISPLAY (MFD)>REMOVAL .

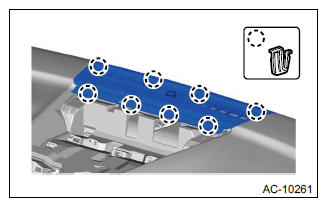

  3. Remove the grille - front defroster.
    1. Release the clips.
      G11245699Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the grille - front defroster.

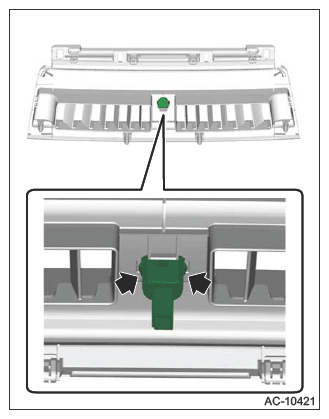

  4. Remove the sunload sensor.
    1. Release the claws and remove the sunload sensor.
      G13226186Courtesy of SUBARU OF AMERICA, INC.
