Pressure Switch (Triple Pressure Switch): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER (EXCEPT FOR HEV)> REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Remove the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO (EXCEPT FOR HEV))>BATTERY>REMOVAL .
  3. Remove the pressure switch.
    1. Disconnect the connector.

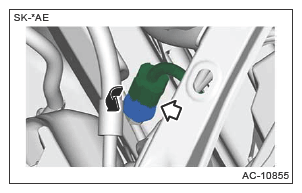

    2. Remove the pressure switch as shown in the figure.
      CAUTION:
      • Do not deform the pipe.
      • Seal the engaging parts of the disconnected pipe and pressure switch with a plug or vinyl tape to prevent foreign matter from entering.
      • Do not re-use the switch.
      G13234192Courtesy of SUBARU OF AMERICA, INC.
