Manual A/C Model

WARNING: This page is about a different variant/trim than selected.

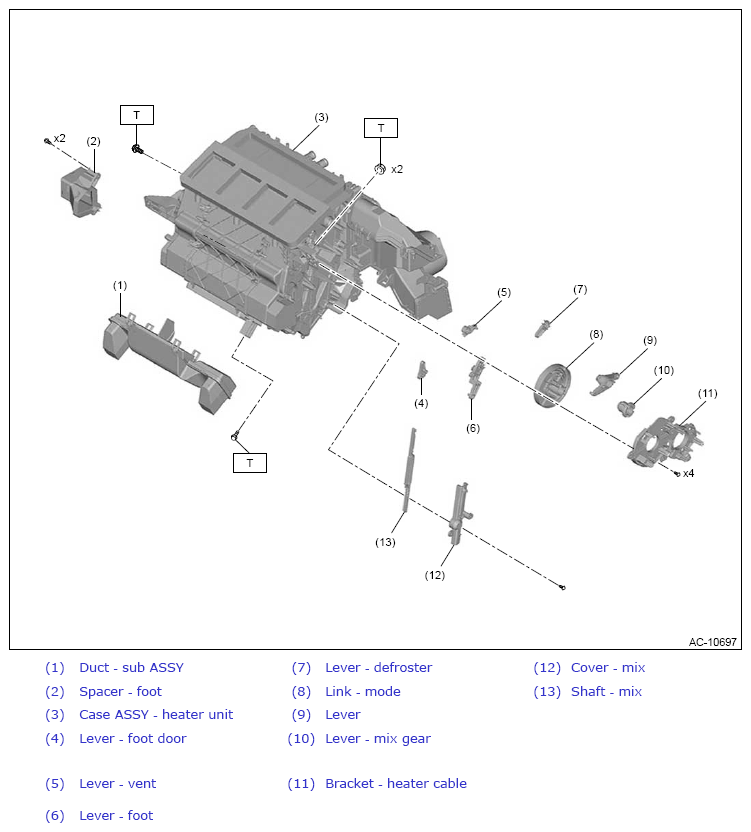

Fig 1: Heater Cooling Unit Components - Manual A/C Model (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 3.5 (0.4, 2.6)

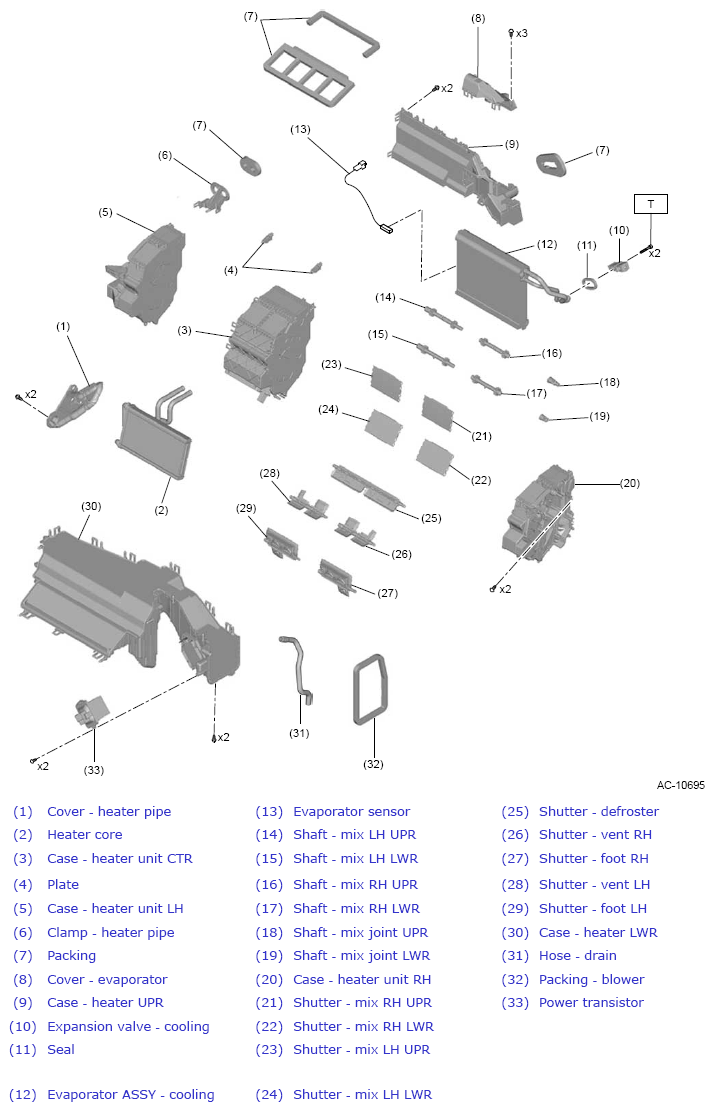

Fig 2: Heater Cooling Unit Components - Manual A/C Model (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
