Auto A/C Model

WARNING: This page is about a different variant/trim than selected.

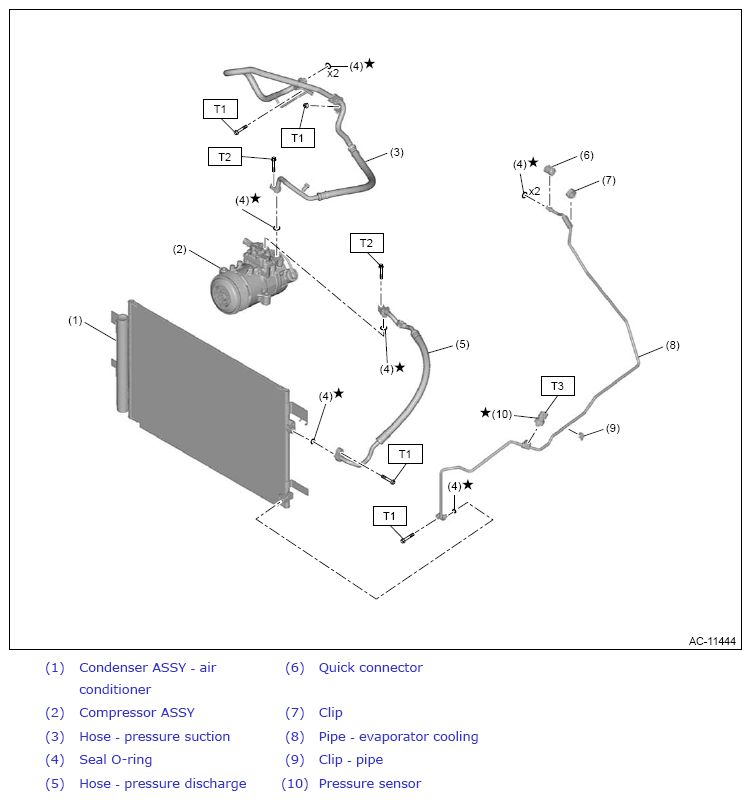

Fig 1: Air Conditioning Unit Components - Auto A/C Model
G13938049Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 10 (1.0, 7.4)

T3: 10.8 (1.1, 8)
